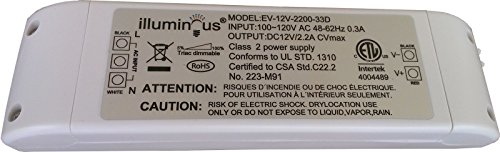

12V 26W Dimmable CV DC LED Driver ETL (UL) Approved

$23.00
Old price : $23.00

Eversale Part#: EV-12V-2200-33D 609224012327 - 12V 26W Dimmable CV DC LED Driver ETL (UL) Approved

Input range from 100~120V AC, 50-60Hz, Pf> 0.95
Magnetic Dimmable DC Output: 12V, 2200mA (26.4W), Class 2 Power Supply
Dimmable, Suitable for Leading Edge or Trailing Edge TRIAC dimmers (see datasheet for list)
Protection: Short-Circuit / Over Current / Over Voltage and Auto-recovery Mode
Compact, lightweight plastic case.
Lamps wired in parallel
Double Isolation for Safety
Terminal Screw Connection (Input: N, L, Earth. Output: +12V, GND)
Approvals: ETL US (UL), CE, TUV, RoHS
-20C to +45C, full load, max case 70C, 20 to 95% RH NC
Size: 6.69" L x 1.89" W x 1.00" H (170mm L x 48mm W x 25mm H)
2 year warranty
Note: Dimming performance optimal at greater than 50% load. i.e. 13W+ for a 26W driver.
So pick the right Eversale driver, 12W, 26W or 48W
Note: Best Dimmers Leviton Decora Sureslide 6631, Lutron Diva DV-600PR, Insteon Switchlinc 2477D, GE Z-Wave Wireless 12724. Lutron LG-600H
Eversale does not sell our product through any other reseller, ONLY direct. Other sellers are not selling Eversale Product and hence their specification, warranty, and features are not the same. Buy with confidence from Eversale.

Features:

  • Input range from 100~120V AC, 50-60Hz, Pf> 0.95
  • Magnetic Dimmable DC Output: 12V, 2200mA (26.4W), Class 2 Power Supply
  • Dimmable, Suitable for Leading Edge or Trailing Edge TRIAC dimmers (see datasheet for list)
  • Protection: Short-Circuit / Over Current / Over Voltage and Auto-recovery Mode
  • 60w see B0741NL9N5, 80W see B0741RFZJP, 120W see B0741QCT6Z, 200W see B07RGCLJST, 300W see B07RGCMRLZ

UPCs:

  • 609224012327

EAN:

  • 0609224012327
  • Manufacturer: Eversale
  • Part Number: EV-12V-2200-33D
  • Label: EverSale
