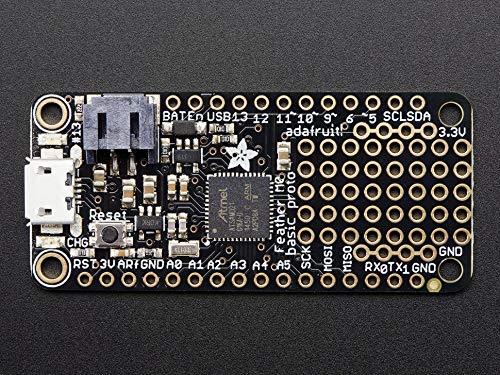

Adafruit Feather M0 Basic Proto - ATSAMD21 Cortex M0 [ADA2772]

$19.95
Old price : $20.99

Adafruit Part#: 2772 743724369274 - Adafruit Feather M0 Basic Proto - ATSAMD21 Cortex M0 [ADA2772]

Feather is the new development board from Adafruit, and like its namesake it is thin, light, and lets you fly! We designed Feather to be a new standard for portable microcontroller cores. This is the Feather M0 Basic Proto, it has a bunch of prototyping space built right in. We have other boards in the Feather family, check'em out here! At the Feather M0's heart is an ATSAMD21G18 ARM Cortex M0 processor, clocked at 48 MHz and at 3.3V logic, the same one used in the new Arduino Zero. This chip has a whopping 256K of FLASH (8x more than the Atmega328 or 32u4) and 32K of RAM (16x as much)! This chip comes with built in USB so it has USB-to-Serial program & debug capability built in with no need for an FTDI-like chip. To make it easy to use for portable projects, we added a connector for any of our 3.7V Lithium polymer batteries and built in battery charging. You don't need a battery, it will run just fine straight from the micro USB connector. But, if you do have a battery, you can take it on the go, then plug in the USB to recharge. The Feather will automatically switch over to USB power when its available. We also tied the battery thru a divider to an analog pin, so you can measure and monitor the battery voltage to detect when you need a recharge.

Features:

  • Measures 2.0" x 0.9" x 0.28" (51mm x 23mm x 8mm) without headers soldered in
  • Light as a (large?) feather - 4.6 grams
  • ATSAMD21G18 @ 48MHz with 3.3V logic/power
  • 256KB of FLASH + 32KB of RAM
  • 32.768 KHz crystal for clock generation & RTC

UPCs:

  • 743724369274
  • 604310747794

EAN:

  • 0604310747794
  • Manufacturer: Adafruit
  • Part Number: 2772
  • Model: 2772
