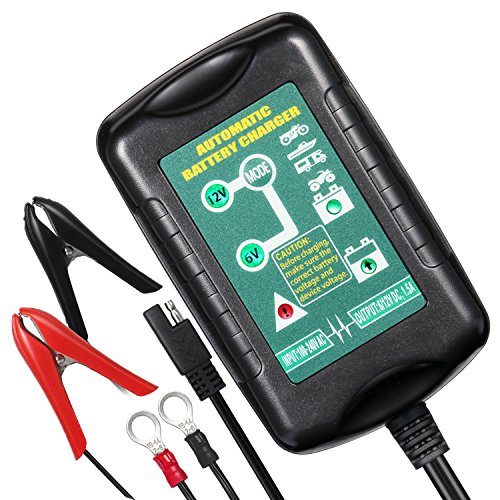

Automatic Battery Charger, InThoor 6V/12V 1.5Amp Trickle Charger Maintainer with Car Adapter for Vehicle/Motorcycle/Lawn Mower/ATV/RV and More

$.0

Inthoor Part#: EPA1020-0612 691608976417 - Automatic Battery Charger, InThoor 6V/12V 1.5Amp Trickle Charger Maintainer with Car Adapter for Vehicle/Motorcycle/Lawn Mower/ATV/RV and More

The InThoor trickle charger is ideal for charging both 6V and 12V Vehicle, motorcycle, Lawn Mower, ATV, RV and More. 4-stage charging process reduces the risk of damaging the battery.

4-stage charging process
Stage 1: initialization, when the charger power on then it start self-check and detect the battery correct connect. low output voltage without battery Fault LED is light, please CHECK THE POLARITY IS CORRECT.
Stage 2: Bulk charge, using the charger highest rated current for the type of battery in use until it reaches 80% capacity( LEDs 50% blinking, 100% OFF)
Stage 3: Absorption, the output voltage is limited to 7.3V(6V battery) or 14.5V(12V battery) while current declines as the battery charges to its full capacity without overheating( LEDs 50% ON ,100% blinking)
Stage 4: Float, at this stage, the battery is fully charged and the charger maintains the battery through pulse charging( LEDs 50% ON ,100% ON)

SPECIFICATION
Input: 100-240V AC@50/60Hz 0.5rms
Output: DC 6.9V@ 1.5Amp/ DC 13.8V@1.5Amp
Limited voltage: 7.2~7.3V or 14.5~14.7V
Float current: 300mA~400mA
Charging mode: Fully automatic
Suitable battery: 6V or 12V AGM GEL VRLA SLA WET
Charging Battery: 6-12Ah
Maintaining Battery: 4-36Ah
Safety: EN60950-1 EN60335
EMC: EN55022
Approved: CE RoHS

Package includes:
1 x InThoor Battery Charger & Maintainer
1 x DC Output Cable with Clip Connectors
1 x DC Output Cable with Ring Connectors
1 x Car Adapter
1 x Instruction Manual

Features:

  • 【Automatic charging/ maintaining】No need of any manual operation, just plug and leave trickle charger for charging and maintaining your batteries automatically for long time
  • 【6V/12V Selectable Output】The trickle charger is ideal for maintaining both 6V and 12V car, motorcycle, lawn mower, ATV, RV and More
  • 【4-stage charging process】(Initialization, Bulk Charge, Absorption Mode, Float Mode) allows for optimization of battery power, without the damage of overcharging
  • 【Safety Protection】Multi-level safety protects against overcharging, short-circuits and reverse polarity. Spark Free Technology
  • 【Easy connection】InThoor trickle charger is easy to connected to motorcycles and vehicle's battery using the included big battery clips and O-ring terminal

UPCs:

  • 691608976417
  • 691608976387

EAN:

  • 0691608976387
  • Manufacturer: Inthoor
  • Part Number: EPA1020-0612
  • Label: InThoor
  • Color: Black
