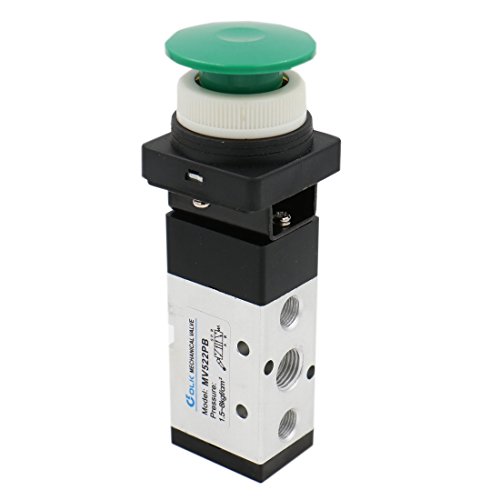

Baomain Pneumatic Mechanical Valve MV522PB 1/4"PT 2 Position 5 Way Momentary Green Mushroom Button

$12.19
Old price : $12.19

Baomain Electric Co.,Ltd Part#: MSV-86522PB 711811396557 - Baomain Pneumatic Mechanical Valve MV522PB 1/4"PT 2 Position 5 Way Momentary Green Mushroom Button

  • 2/5 way mechanical valve.
  • Steady performance,easy installation.
  • This pneumatic mechanical valve is used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
    •

    Features:

    • Model : MV522PB
    • Pipe Thread Diameter : Air Inlet=Air Outlet=11.5mm;Exhaust=8.5mm
    • MAX Pressure: 0.1 - 0.8MPa; Body Size : 35 x 26 x 80mm/ 1.37" x 1.02" x 3.15"(L*W*H)
    • Mushroom Button Diameter : 37.5mm/ 1.5"; Total Size(Approx.) : 36 x 32 x 122mm/ 1.4" x 1.26" x 4.8"(L*W*H)
    • Weight : 224g; Package : 1 x Mechanical Valve

    UPCs:

    • 711811396557

    EAN:

    • 0711811396557
    • Manufacturer: Baomain Electric Co.,Ltd
    • Part Number: MSV-86522PB
    • Model: MV-522PB
