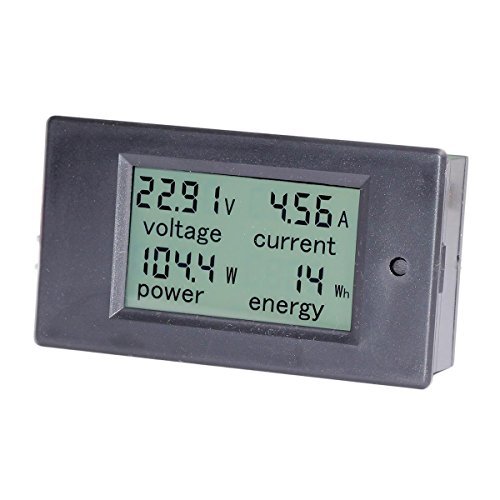

bayite DC 6.5-100V 0-20A LCD Display Digital Ammeter Voltmeter Multimeter Current Voltage Power Energy Battery Monitor Amperage Meter Gauge with Built-in Shunt

$14.99
Old price : $14.99

Generic Part#: CECOMINOD005827 711463670234 - bayite DC 6.5-100V 0-20A LCD Display Digital Ammeter Voltmeter Multimeter Current Voltage Power Energy Battery Monitor Amperage Meter Gauge with Built-in Shunt



Main Specifications:

Working voltage: DC 6.5 ~ 100V
Measuring Accuracy: 1%
Power Consumption: 0.2W
Measurement speed: 2 times/s
Store energy data when power off. Can be reset to 0.
The blue backlight can be turned on/off manually

Test Range:

1. Active Power test range: 0~2kW
2. Energy test range: 0~9999kWh
3. Voltage test range: DC 6.5~100V
4. Current test range: 0~ 20A

Cautions

1. This module is only suitable for 6.5~100V DC power.
2. Applied load should not exceed the rated power.
3. Wiring order can not be wrong.
4. This module is suitable for indoor applications, please do not use outdoors.

Package includes:
1x DC 6.5-100V 20A Power Multimeter

Warranty:
1-year free replacement or full refund without return.
If the item you have received is defective in any way, please message us for free replacement or a full refund without return.

Features:

  • Voltage test range: DC 6.5~100V; Current test range: 0~20A
  • Store energy data when power off(can be reset to 0)
  • Overload Alarm Function: If active power is larger than threshold, backlight and power will flash
  • Large-screen LCD(display voltage, current, active power, energy at the same time)
  • The blue backlight can be turned on/off manually

Catalog Numbers:

  • BAYITE-PZEM-031

UPCs:

  • 711463670234

EAN:

  • 0711463670234
  • Manufacturer: Generic
  • Part Number: CECOMINOD005827
  • Model: CECOMINOD005827
