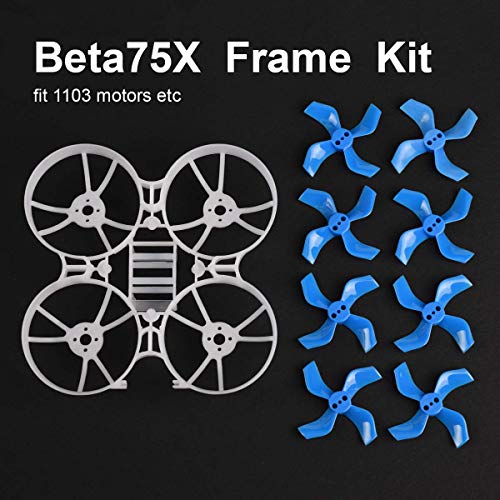

BETAFPV Beta75X 3S Whoop White Frame Kit with 2 Sets 40mm 4-Blade Props 1.5mm Shaft Blue for 75mm 3S Brushless Beta75X Whoop Drone

$12.99

Betafpv Part#: 00313373 - BETAFPV Beta75X 3S Whoop White Frame Kit with 2 Sets 40mm 4-Blade Props 1.5mm Shaft Blue for 75mm 3S Brushless Beta75X Whoop Drone

BETAFPV Beta75X 3S Whoop Frame Kit with 2 Sets 40mm 4-Blade Props 1.5mm Shaft Blue for 75mm 3S Brushless Whoop Drone like Beta75X Whoop Drone
Specifications:
Frame
Material: Clear plastic
Diagonal motor to motor distance: 75mm
Motor mounting hole: for 110x series motors
FC mounting hole: 26mm x 26mm, fully compatible with whoop style FC board mounting pattern
Battery slot size: 11.5x16mm, for BETAFPV 300mAh/350mAh 2S battery Weight: 7.1g/pc
Color:White

Propellers
Prop: 40mm 4-blade props
Material: Clear plastic
Inner diameter: 1.5mm Shaft
Color: Blue
Weight (2CW+2CCW): 2.40(g) = 0.08(oz)

Recommend Parts:
Batteries:
350mAh 2S Lipo HV batterie - www.amazon.com/dp/B07JG3ZFC5
300mAh 2S Lipo HV batterie - www.amazon.com/dp/B07R7856RX
Motors:
1103 11000KV motors - www.amazon.com/dp/B07FN64599
FC:
Betafpv 2S Brushless 12A FC+BLHELI_S ESC - www.amazon.com/dp/B07H8XQ7R6

Package:
1 * Beta75X frame for 75mm 2S whoop drone 8 * 40mm 4-blade 2S Whoop Propellers (4CW + 4 CCW)

Features:

  • 【Compatible Drone】BETAFPV Beta75X 2S Whoop Frame is designed for 75mm 2S whoop drone, with a customed battery slot to support 2S battery or 2pcs 1S battery series connection
  • 【Beta75x frame】 Beta75x frame made of clear plastic material，light and durable only weighs 7.1g/pcs , with a 26mm*26mm FC mounting columns can match whoop style flight controller
  • 【Propellers】2 sets 40mm 4-blade props 1.5mm shaft in this kit, can fit the 110x motors perfectly, only weighs 2.6g/set
  • 【Battery&Motor】If order this frame kit, highly recommend the BETAFPV 300mAh battery and 1103 brushless motors for DIY Beta75X 2S Brushless BNF
  • 【Support】Any technical support needed please contact: support04@betafpv.com
  • Manufacturer: Betafpv
  • Part Number: 00313373
  • Label: BETAFPV
  • Color: White Frame
