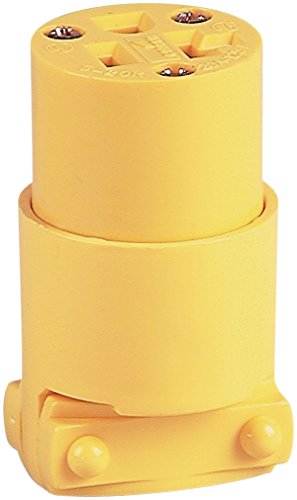

EATON 4228-BOX Heavy Duty Grounded Straight Blade Electrical Connector, 125 V, 20 A, 2 Pole, yellow

$4.20
Old price : $4.20

Eaton Part#: 4228-BOX 032664332807 - EATON 4228-BOX Heavy Duty Grounded Straight Blade Electrical Connector, 125 V, 20 A, 2 Pole, yellow

Cooper electrical connector, heavy duty, grounded, straight blade, 2 poles, 3 wires, 20 a, 125 V, NEMA 5-20r, thermoplastic vinyl, yellow, CSA certified, Nom certified, UL listed, 1/4 - 0.66 in cord diameter, for commercial applications. The Eaton 4228 20-Amp 125-Volt 5-20 commercial grade vinyl connector feature solid brass plug blades are firmly embedded in body. Terminal screw clamps are designed to contain wire and prevent binding. Terminal screws backed out - ready for wiring. Terminals in individual chambers to positively insulate conductors. Vinyl angle plugs have eight possible positions for maximum convenience. Combination slot/Phillips head mounting and terminal screws ease installation with power screwdrivers (slot/Robertson screws in Canada where available).

Features:

  • Commercial Grade - Thermoplastic Vinyl Connectors feature solid brass plug blades are firmly embedded in body
  • Terminal screw clamps are designed to contain wire and prevent binding
  • Terminal screws backed out - ready for wiring
  • Terminals in individual chambers to positively insulate conductors
  • Vinyl angle plugs have eight possible positions for maximum convenience

Catalog Numbers:

  • 511574
  • 4228-BOX

UPCs:

  • 032664332807
  • 705554384018
  • 785577884504

EAN:

  • 0032664332807
  • Manufacturer: Eaton
  • Part Number: 4228-BOX
  • Model: 4228-BOX
  • Label: EATON
  • Color: yellow
