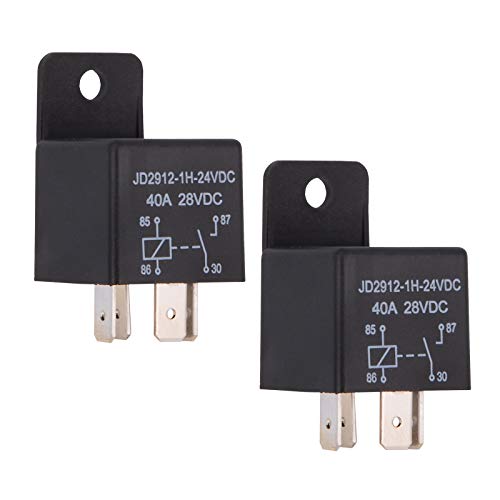

Ehdis Car Relay 4 Pin 24v 40amp Spst Model No.: JD2912-1H-24VDC 40A 28VDC, Auto Switches & Starters, 2 Pack

$8.99
Old price : $13.99

Ehdis Part#: 2C05-24V 713653050420 - Ehdis Car Relay 4 Pin 24v 40amp Spst Model No.: JD2912-1H-24VDC 40A 28VDC, Auto Switches & Starters, 2 Pack

Contact Data:
Contact Material: AgSnO12
Contact Form: 1Z(C) / 1H(A)
Contact Ratings: No: 40A 72VDC
Contact Resistance: 100mMax at 6VDC 1A
Max switching Current: 40A
Max Switching Power: 560W
Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min)
Life Expectancy Mechanical: 10,000,000 Operations

Coil Specification:
Nominal Voltage(VDC): 24V
Coil Resistance (1.8W): 320
Max Operate Voltage (VDC): 13~16
Mix Release (VDC): 2.4~7.2
Max Applicable Voltage (VDC): 28

Characteristics:
Temperature Range: -30°C ~+80°C
Vibration Resistance: 10~55Hz, 1.5mm
Shock Resistance:
Operations Extremes: 10g
Damage Limits: 100g
Humidity: 40%~85%
Insulation Resistance: 100m ohm Min at 500VDC
Safety Standard: CCEE
Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec)
Between Contact and coil: 750VAC (for one minute/sec)
Operate Time: 7ms
Release Time: 5ms
Weigh: Approx. 35g

Features:

  • Brand new heavy duty 4-prongs SPST relays
  • Use optional Relay Harness, or female Crimp Connectors
  • High 40A coil capacity- able to handle those high current applications with ease
  • Package Include: 2 x 40A 4-Pin 24V Vehicle Relays
  • Mechanical life of 10,000+ cycles

Catalog Numbers:

  • 9829680011

UPCs:

  • 713653050420

EAN:

  • 0713653050420
  • Manufacturer: Ehdis
  • Part Number: 2C05-24V
  • Color: 4Pin 24V 40A
