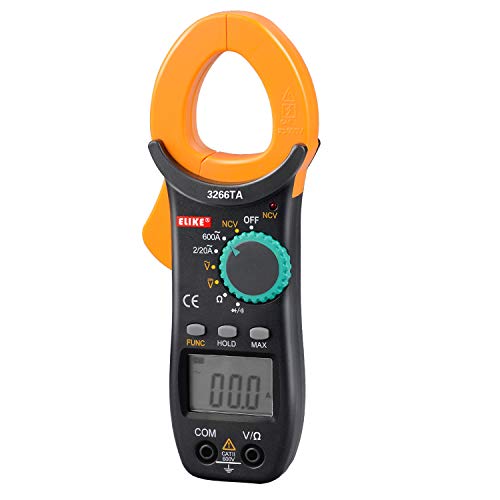

ELIKE 3266TA 600A Autoranging Digital Clamp Meter & Multimeter with NCV,AC/DC Voltage,Resistor,Diode,Continuity

$19.99
Old price : $30.99

Elike Part#: 742500979768 - ELIKE 3266TA 600A Autoranging Digital Clamp Meter & Multimeter with NCV,AC/DC Voltage,Resistor,Diode,Continuity

Nanjing ELIKE Meter specializes in developing and manufacturing digital clamp meter ,analog meter, battery tester and insulation resistance tester etc. It is a compact and auto-ranging clamp meter with a large 4-digit screen. It measures AC current to 600 amp,AC and DC voltage to 600V, and resistance to 40M.It is ideally suited for current measurements in tight cable compartments.Audible continuity function confirms that the circuit conducts electricity,and a diode test detects whether a circuit's diodes are working properly. The hold function keeps the reading on the display, even after the meter is disconnected. A low-battery indicator signals when the meter's batteries need to be replaced.It has overload protection and a tool ideal for startup for entry-level electricians, hobbyists, and general household uses.

Specifications:
AC Current: 2A/20A/400A/600A
AC Voltage: 200mV/2V/20V/200V/600V
DC Voltage: 200mV/2V/20V/200V/600V
Resistor : 200/20K/200K/2M/20M

Features:
Auto Ranging,NCV,Diode,Continuity Buzzer,Low Battery Display,Data Hold,Max Hold
Auto Power-off,Overload Protection,Sampling Frequency:3times/s , Max Display:1999

General Characteristics:
Product Color: Iron-gray and Orange
Product Weight:200g
LCD Size:38.4×28.4mm/1.5 inch x1.1 inch
Meter Size:183×47×25mm /7inch x 2.5 inch x 1.1inch(L*W*T)
Power:2×1.5V AAA included

Package Content:
1 x Digital Clamp Meter
1 Pair x Test Probe Leads
1 x Carrying Case
1 x English Manual
2 ×1.5V AAA Battery

Features:

  • The clamp meter with smooth dial can test ACA ACV DCV resistance continuity diode and True RMS
  • Non-contact voltage (NCV) detector senses AC voltage&flashes without contact with curcuit
  • The clamp has two jaws with strong spring can close around a conductor up to 25mm in diameter
  • The meter automatically turns off after 10 minutes of non-use to conserve battery life
  • It is designed according to International Electrotechnical Commission (IEC) safety standard 61010

UPCs:

  • 742500979768

EAN:

  • 0742500979768
  • Manufacturer: Elike
  • Model: 3266TA
  • Label: ELIKE
  • Color: Orange and Grey
