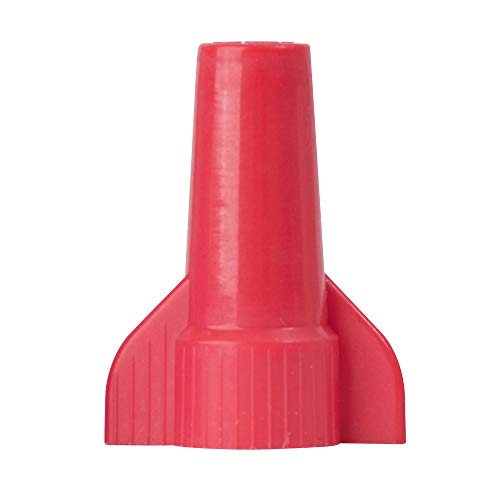

Gardner Bender 13-086 Winggard Twist-On Wire Connector, 22-6 Awg, 300 V, 600 V, Thermoplastic, 500 Pack, Red,

$16.18
Old price : $21.16

Actuant Part#: GID-600052 032076130862 - Gardner Bender 13-086 Winggard Twist-On Wire Connector, 22-6 Awg, 300 V, 600 V, Thermoplastic, 500 Pack, Red,

Winggard color-coded twist-on wire connectors. Unsurpassed quality and durability in a high-leverage, easy-on wing-type design. Wings are knurled for a sure grip and offset from centerline for greater twisting leverage. Square-wire plated spring instantly adjusts to the shape and size of the splice. Flame-retardant properties resist heat distortion up to 105 DegreeC (221 degreef).

Features:

  • DESIGNED TO LAST: Wings are knurled for a sure grip and offset from centerline for greater twisting leverage. Square wire spring grabs and holds wires for secure connections.
  • DESIGNED TO LAST: Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
  • FLAME-RETARDANT TEMPERATURE RATING: Flame-retardant properties resist heat distortion up to 105°C / 221°F
  • HIGH-DIELECTRIC: shell features deep skirt design to prevent exposure of bare wire - COPPER TO COPPER connections only
  • STANDARD RATING: 600V max in building wire and at 1000V max in lighting, fixtures/luminaries and signs
  • UL LISTED: Canadian and U.S. requirements (connections rated at 600V Max for building wiring and rated at 1000V Max in lighting fixtures/luminaries and signs)
  • WIRE RANGE: 2 #20 (Min) to 4 #10 (Max)
  • Unsurpassed quality and durability in a high-leverage
  • Copper-to-copper connections only
  • WireGard-Color-Coded Screw-On Wire Connectors

UPCs:

  • 032076130862

EAN:

  • 0032076130862
  • Manufacturer: Actuant
  • Part Number: GID-600052
  • Model: 13-086
  • Color: Red
