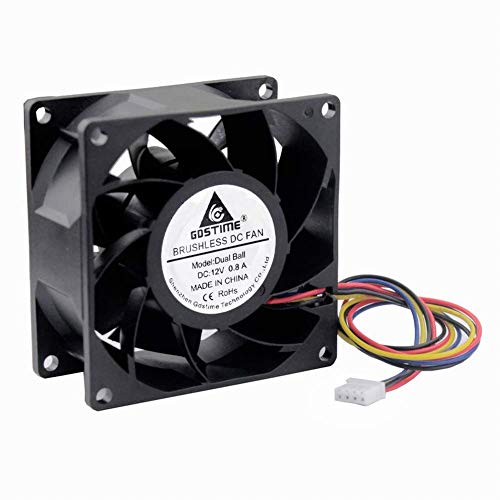

GDSTIME 80mm x 38mm 8038 PWM High Speed Dual Ball Bearing DC 12V 80mm Cooling Fan

$18.99
Old price : $18.99

Gdstime Part#: GDT8038B12V4P - GDSTIME 80mm x 38mm 8038 PWM High Speed Dual Ball Bearing DC 12V 80mm Cooling Fan

Package include: 1pcs fan include fan grill and mounting screws
Dimensions: 80x80x38mm
Connector: 4Pin
Rated Voltage: DC 12V
Rated Current: 0.8 Amp
Rated Speed: 5500 RPM
Air flow: 72.6CFM
Noise: 47dBA
Bearing Type: Dual Ball Bearings
Life: 50000 hours at 25 degree
Cable Lenght: 30cm or 12 inches
Weight: 145g or 5.1 oz

Features:

  • Dimension of outer the frame is 80mm(L) x 80mm(W) x 38mm(H) / The size of fan in inch is 3.15in(L) x 3.15in(W) x 1.5in(H); The center to center distance beween the mountiong holes is 71.5±0.3mm/2.81in.
  • Operating Voltage Range：5.5V to 13.8V. (overtake to 13.8V, it can also work. but not safe, and seriously affects lifespan of fan.)
  • Rated Voltage: DC 12V; Rated Current: 0.8 Amp; Rated Speed: 5500 RPM; Air flow: 72.6CFM; Noise: 47dBA; Power: 6.0Watt.
  • Connector: 4-PIN; Lead wire: UL Type (+): Red Wire ; (-): Black Wire. FG function：Yellow Wire. PWM: Blue Wire. This is four wire cooling fan.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.
  • Manufacturer: Gdstime
  • Part Number: GDT8038B12V4P
  • Model: GDT8038B12V4P
  • Label: GDSTIME
  • Color: 8038 PWM FAN
