Great Planes Set Screw Prop Adapter 8.0mm to 3/8x24

$5.56
Old price : $6.99

Horizon Hobby Part#: GPMQ4945 735557649456 - Great Planes Set Screw Prop Adapter 8.0mm to 3/8x24

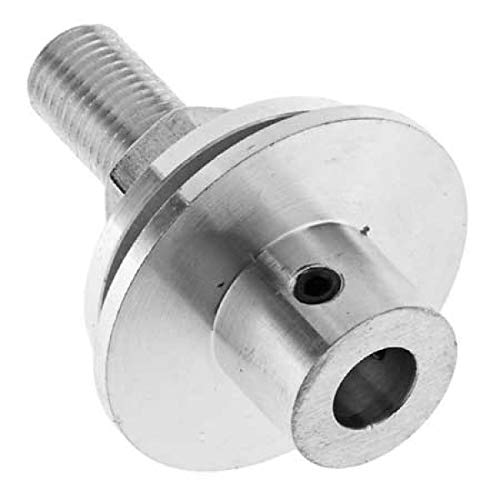

This is the Great Planes ElectriFly 8.0mm to 3/8-24
Prop Adapter with Set Screw and Propeller Nut.

FEATURES: Mounts onto the shaft coming out of the gearbox or motor with the
included set screw. The propeller mounts onto this with the
included nut.
Aluminum prop drive
Metal hardware
One year quality guarantee.
Compatible with any electric flight motor with a 8mm diameter shaft

INCLUDES: One Replacement Prop Drive
One 5/64"X4mm Set Screw
One 9/16 (14mm) Propeller Nut

REQUIRES: Installation onto the motor or gearbox shaft.

SPECS: Length: 1.86" (47.29mm) end to end
1.09" (27.6mm) complete shaft w/.96" (24.4mm) threaded
portion.
Diameter: 3/8" (9.5mm) prop shaft
.31" (8mm) ID for motor shaft
1.4" (35mm) largest part of hub (thrust washer portion)
.62" (15.8mm) smallest part of hub

Features:

  • Mounts onto the shaft coming out of the gearbox or motor with the included set screw. The propeller mounts onto this with the included nut.
  • Metal hardware
  • One year quality guarantee.
  • Compatible with any electric flight motor with a 8mm diameter shaft
  • Aluminum prop drive

Catalog Numbers:

  • 149-GPMQ4945

UPCs:

  • 735557649456

EAN:

  • 0735557649456
  • Manufacturer: Horizon Hobby
  • Part Number: GPMQ4945
  • Model: GPMQ4945
