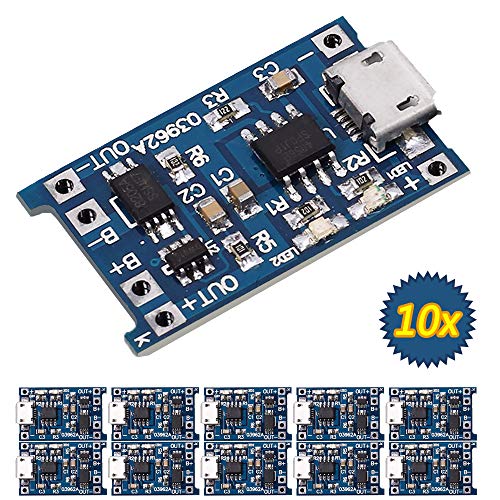

Icstation TP4056 Micro USB 5V 1A 18650 Lithium Battery Charger Board, with Overcharge Over-Discharge Over-Current Protection (Pack of 10)

$10.49
Old price : $11.55

Icstation Part#: 929210 - Icstation TP4056 Micro USB 5V 1A 18650 Lithium Battery Charger Board, with Overcharge Over-Discharge Over-Current Protection (Pack of 10)

IS-Icstation mini Li-ion battery charger board, built-in TP4056 chip, set charging and battery over-charge over-discharge over-current protection all in one practial for your DIY 18650 battery power supply to prolong its lifetime. On-board micro USB and soldering joints 5V input port and charging status indicator ideal for single-cell lithium or multi-section parallel lithium battery.

Specifications:
Chip: TP4056
Input Voltage: DC5V
Charging Cut-off Voltage: 4.2V±1%
Maximum Charging Current: 1A
Battery Over Discharge Protection Voltage: DC2.5V
Battery Over Current Protection Current: 3A
Board Size: 26 X 17mm/1.02 X 0.67inch(L*W)

Package Included: 10 Pcs TP4056 Micro USB 5V 1A 18650 Lithium Battery Charger Board

Notice Please:
1.when use this module at first time, there may be no voltage output between OUT+ and OUT-, it need connect the 5V power supply to active the circuit; When the battery disconnect with this module and connect it again also need this step.
2.When use the phone power adapter as the input power supply, it need the power adater output current is over 1A.
3. If you have any question about products, application and delivery, please send us an email firstly, we will follow up in 12 hours during the business days, thank you!

Features:

  • Micro USB lithium ion / lipo / 18650 battery charging board, built-in TP4056 chip, set charging and battery over-charge over-discharge over-current protection all in one practial for your DIY 18650 battery power supply to prolong its lifetime.
  • On-board micro USB and soldering joints 5V input port and charging status indicator (red indicator is charging, green or blue indicator is full charged)
  • Input Voltage: DC5V, Charging Cut-off Voltage: 4.2V±1%, Maximum Charging Current: 1A
  • Battery Over Discharge Protection Voltage: DC2.5V, Battery Over Current Protection Current: 3A, Board Size: 26 X 17mm/1.02 X 0.67inch (L*W)
  • Please choose the original seller "Icstation",only Icstation provide the best after-sales service and we are not responsible for products sold by counterfeit seller.FBA service will be delivery in 2 - 4 days
  • Manufacturer: Icstation
  • Part Number: 929210
  • Model: Micro USB 5V 1A Li-ion Battery Charger
  • Color: Blue
