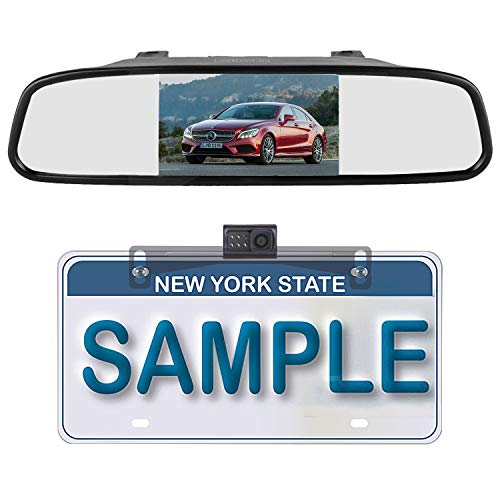

LeeKooLuu Reverse/Rear View Camera and Mirror Monitor Kit Only Wire Single Power Rear View/Full time View Optional for Car Truck with 7 LED Night Vision Waterproof Grid Lines

$33.99
Old price : $33.99

Leekooluu Part#: FBA_LKL-1 713524847586 - LeeKooLuu Reverse/Rear View Camera and Mirror Monitor Kit Only Wire Single Power Rear View/Full time View Optional for Car Truck with 7 LED Night Vision Waterproof Grid Lines

Rear view camera & Mirror Monitor System:
1,This system mainly used on car/RV/Truck/Trailer
2,Please noted the mirror monitor size,it not compatible for all cars, its compatible for unversal original mirror.
3, The monitor will turn on auto when power come on and video signals inputs,after it will turn off auto.
4, The system can be set up to work in reversing or working constantly in driving optional by you.
5, The whole system can be hooked up with single power supply (reverse lights or cigaratte lighter ) easy to install.
6, The monitor can be mounted on dash or the monitor mount is removeable to hook anywhere you like
7, We provided instructions manual and video for all customer,contact us if you didn't get it.
8,If you need longer cable,please contact us get free one 33ft/50ft.
10, 2 year warranty

4.3 Mirror Monitor Specification:
The product itself 100% safety and met any FCC/CE/RoHS/UL/IP6X standard
-Displays: 4.3 inch (diagonal length)
-Resolution: 720P
-Ultra-low power consumption, to prevent over heat
-Signal format: PAL / NTSC. Compatible with all signal formats
-Rated Voltage: 9V - 35V,400mA-20A

Rear view Camera
Specification:
The product itself 100% safety and met any FCC/CE/RoHS/UL/IP6X standard
Image sensor: PC7070 (Distance reference marking display)
Resolution:600 TV line
S/N Radio: better than 48db
Video output: RCA connector, 1.0vp-p,750hm
Power: 9V-12V DC ,400mA-20A
Waterproof grade: IP68
Effective Pixels:648X488pixels/NTSC

Package Includes:
1 x 4.3 Mirror Monitor
1 x Camera
2 x Power Cable 8.2ft
1 x 4-Pin Cable 23.5ft
1 x Lighter adapter
1 x User Manual

Features:

  • Very easy installation. The system is powered by connecting to reverse lights for use when vehicle is in reverse gear. Or can be powered by directly connecting to a 12v source fuse box or cigarette lighter/power point/ignition switch for continuous use.
  • IP68 waterproof, color HD license plate camera with 150 degree viewing angle and 7 LED lights.Camera is connected to monitor via direct wire (provided).IR Night Vision view clearly at night.
  • Guidelines ON/OFF&Image Flip.You can turn on/off the guidelines via the mirror monitor button.Camera comes with green wire,Cut the Green wire image will turn into a normal facing image which means you can use this system for high-way Observation.
  • 4.3 inch LCD display monitor can be directly fixed on the original mirror with provided extensionable clips. It will not block the implementation.Monitor has capability to monitor two video inputs V1/V2. V2 video input will have priority (reverse camera) for safety.
  • Installation instructions are included. Product has a 2 year warranty and tech support is available via leekooluu@outlook.com

UPCs:

  • 713524847586

EAN:

  • 0713524847586
  • Manufacturer: Leekooluu
  • Part Number: FBA_LKL-1
  • Model: FBA_LKL-1
  • Label: LeeKooLuu
