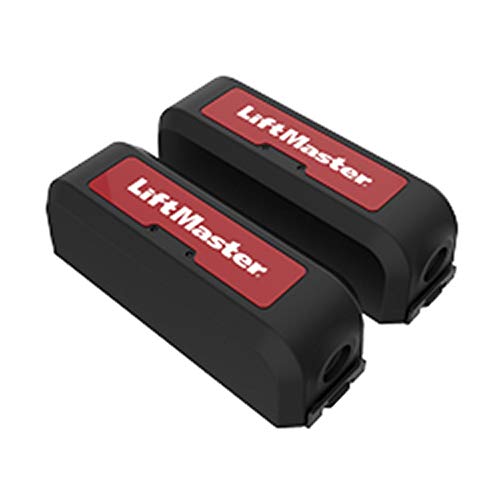

Liftmaster Monitored Wireless Edge Receiver and Transmitter (LMWEKITU)

$99.99
Old price : $99.99

Liftmaster Part#: Lift-WL-Receiver-Transmitter-LMWEKITU - Liftmaster Monitored Wireless Edge Receiver and Transmitter (LMWEKITU)

Liftmaster Monitored Wireless Edge Receiver and Transmitter (LMWEKITU)

Monitored Wireless Edge Receiver and Transmitter (LMWEKITU) provides unmatched ease of installation and reliability in virtually all environmental conditions. Liftmaster LMWEKITU includes (1) Transmitter, (1) Receiver, (2) AA Lithium Batteries, (1) Interface Board, Mounting Bracket Hardware.

Unrivaled Performance, Safety and Accessibility.
Fast and easy to pair transmitter and receiver via smart button
Integrated low-battery indicator on gate operator beeps with each activation when battery is low
Status LED indicates device learned or edge activated
Rated NEMA 4X to withstand tough outdoor environments

FEATURES:
Multi-channel Bluetooth transmission eliminates interference and provides up to 130 ft. range
High-capacity edge receiver accepts up to (4) transmitters,and each transmitter accepts up to (2) wired edges
Each transmitter features two unique configurable open/close edge inputs
Integrated diagnostics with the UL 325 Gate Operators

SPECIFICATIONS:
Long-Range Sensing Distance: 130 ft. (39.6m)
Outdoor Rating: NEMA 4X
Temperature Range: -40°F to 149°F (-40°C to 65°C)
Product Dimensions: 6.8" H x 2" W x 1.8" D
Voltage: 6.8VDC
Current Draw:
Receiver: 5.8mA for a 24V system, 12.0mA for a 12V system
Wiring: Receiver: Connects directly to main or expansion board (harness included), does not require separate power.
Inputs: Receiver accepts up to (4) transmitters. 1 receiver per gate operator.
Solar: Compatible, 12mA power draw
Low-Battery Indication: Gate operator beeps twice when transmitter battery is low
Battery Life: Two Year Life, (AA) Lithium Battery
Compatibility: All LiftMaster Gate Operators with burgundy boards and LiftMaster Monitored Resistive Edges ONLY
Warranty: Two Years

Features:

  • Multi-channel Bluetooth transmission eliminates interference and provides up to 130 ft. range
  • Industry-leading low-energy Bluetooth technology is extremely power efficient with two-year battery life
  • Integrated diagnostics with the UL 325 Gate Operators
  • High-capacity edge receiver accepts up to (4) transmitters,and each transmitter accepts up to (2) wired edges
