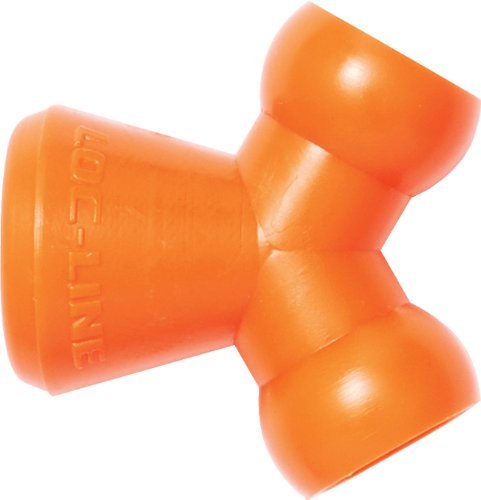

Loc-Line Coolant Hose Component, Acetal Copolymer, Wye Connector, 1/4" Hose ID (Pack of 2)

$6.12
Old price : $8.05

Lockwood Products Part#: 41408 662633414083 - Loc-Line Coolant Hose Component, Acetal Copolymer, Wye Connector, 1/4" Hose ID (Pack of 2)

The Loc-Line Y hose fitting, also known as a wye fitting, is made of orange acetal copolymer plastic and branches one Loc-Line hose to two at a 45-degree angle. When the fitting is used as a drain, the angle of the branches reduces friction and turbulence. The acetal copolymer plastic resists corrosion and moisture and can be used with acetone, alcohol, ethyl, greases, oils, commercial dish detergents, gasoline, lacquer solvents, and sodium hydroxide. The fitting has a maximum operating temperature of 170 degrees F. The material meets National Sanitation Foundation (NSF)/American National Standards Institute (ANSI) 14, 51, and 61 specifications for use with drinking (potable) water, and complies with Registration, Evaluation, Authorization of Chemicals (REACH) and Restriction of the Use of Certain Hazardous Substances (RoHS) standards. The component connects to other Loc-Line components by a ball-and-socket design that snaps together for a tight seal.

Specifications
Maximum Pressure, 1/4" Inner Diameter30 psi (up to 110 psi with element clamp)
Maximum Flow, 1/4" Inner Diameter250 gallons/hour
Maximum Pressure, 1/2" Inner Diameter20 psi (up to 110 psi with element clamp)
Maximum Flow, 1/2" Inner Diameter478 gallons/hour
Maximum Pressure, 3/4" Inner Diameter10 psi
Maximum Flow, 3/4" Inner Diameter1,140 gallons/hour

Lockwood Products manufactures the Loc-Line modular hose system of low-pressure hose and couplings used for coolant, air delivery, smoke and dust removal, and other applications. The company, founded in 1981, is headquartered in Lake Oswego, OR.

Features:

  • Y fitting branches one Loc-Line hose to two at a 45-degree angle to help reduce friction and turbulence
  • Fitting connects to Loc-Line modular hose on both ends
  • Acetal copolymer plastic has an orange color, resists corrosion and moisture, and can be used with acetone, alcohol, ethyl, greases, oils, commercial dish detergents, gasoline, lacquer solvents, and sodium hydroxide
  • Maximum operating temperature of 170 degrees F
  • Material meets NSF/ANSI standards 14, 51, and 61 for drinking (potable) water

Catalog Numbers:

  • Z00416505
  • UNION Werkzeughandel
  • 02#D4270902075

UPCs:

  • 662633414083

EAN:

  • 0662633414083
  • Manufacturer: Lockwood Products
  • Part Number: 41408
  • Model: 82076090
