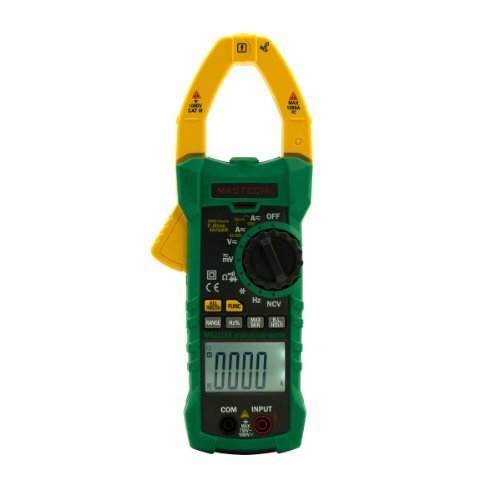

Mastech MS2115A True RMS DIGITAL DC/AC CLAMP METERS Multimeter Amp Voltage R HZ

$58.93
Old price : $60.85

Mastech Part#: H11914-PM1 733353557517 - Mastech MS2115A True RMS DIGITAL DC/AC CLAMP METERS Multimeter Amp Voltage R HZ

Features: 1. LCD with 5999 counts
2. Jaw size up to Φ40mm/1.6 inch
3. DC/AC current measurement up to 1000A
4. Tests AC/DC voltage and current, resistance, capacitance, frequency and duty cycle
5. Built-in Non-contact voltage detector
6. True RMS for AC voltage and AC current
7. Work light and Auto power off
8. Diode check and continuity test
9. Reading hold function

Specification:
Max. Display: 6000
DC Voltage: 60mV/600mV/6V/60V/600V±(0.7% +3) 1000V±(0.8% +2)
AC Voltage: 60mV / 600mV / 6V / 60V / 600V±(0.8% +3) 750V±(1% +4)
DC Current: 60A / 600A / 1000A ± (2.5% + 6)
AC Current: 60A / 600A / 1000A ± (2.5% + 6)
Resistance: 600 / 6k / 60k / 600k / 6Mohm ± (0.8% +3) 60M ohm±(1.2% + 3)
Capacitance Accuracy: 10nF / 100nF / 1000nF / 10µF / 100µF / 1000µF / 10mF / 100mF ± (4.0% + 5)
Frequency(From Clamp) 0~10kHz(1.5% + 5)
Frequency(AC Voltage) 0~10kHz(1.5% + 5)
Logic Frequency 0~60MHz(0.5% + 3)
Duty Cycle 10%~90%(+/-3.0%)

Package list:
1 * Original MASTECH MS2115A AC/DC Digital Multimeter Clamp Meter
1 * Portable bag
1 * Test Cable
1 * Instruction manual Battery(Not Included)

Features:

  • DC/AC current measurement up to 1000A
  • Perform measurements of inrush current, AC / DC voltage and current, resistance, frequency, duty cycle, capacitance, continuity and diode test.
  • Built-in Non-contact voltage detector
  • True RMS for AC voltage and AC current
  • Work light and Auto power off

UPCs:

  • 733353557517
  • 713831671447
  • 700615319374
  • 701413881865
  • 702334765395
  • 702865310699

EAN:

  • 0702334765395
  • Manufacturer: Mastech
  • Part Number: H11914-PM1
  • Model: MS2115A
  • Color: Green
