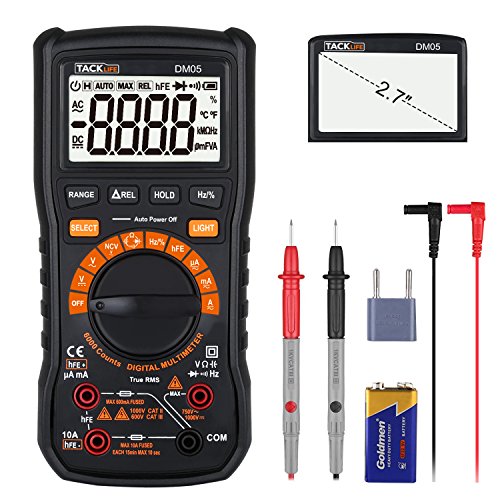

Tacklife Part#: DM05 709202814636 - Multimeter, Tacklife DM05 electronic tester, TRMS 6000 Counts, Auto-Ranging, Measuring Voltage Tester, Current, NCV, Resistance, Continuity, Frequency, Test Diode, Triode, Capacitance, Duty Cycle

Product description:

Tacklife - Professional team on Amazon, which deals only with development of the tools. We commit ourselves to using qualitative tools to improve the quality of life.

● 2.7'' large LCD Blacklit Display
- Provides clear and easy reading even in the dark and data hold function gets you to record any readings you need after removing the probes

● Auto Power off
- The meter will auto power off after 30mins's no operation to save energy, and the Auto power could be canceled if you press "Select" button

● hFE and REL Button
- Press the REL button data to zero if affected by the surrounding electric or magnetic field which can give you more accurate and reliable measurement; and it is more convenient to measure triodes with the specialized triode adapter dispatched than with test leads

● Non Contact Voltage Detection
- When detecting AC voltage is over 110V (RMS), the buzzer beeps; Protective rubber sleeve for drop protection


Specification:
● Safety/Certification: IEC-61010-1 CATⅢ 600V, CAT.II 1000V, double insulation
● Max Display: True RMS, 6000 counts, 3 5/6 digits
● Overload Display: Display OL
● DC Voltage: 600mV/6V/60V/600V±(0.5%+3), 1000V ±(0.5%+3)
● AC Voltage: 6V/60V±(0.8%+3), 600V/750V ±(1%+10)
● DC Current: 60μA/60mA/600mA±(0.8%+3), 10.00A ±(1.2%+3)
● AC Current: 60mA/600mA±(1%+3), 10A ±(1.5%+3)
● Resistance: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ±(0.8%+3), 60MΩ ±(1.2%+3)
● Capacitance: 6nf/60nf/600nf/6uf/60uf/600uf/6MF ±(4.0%+3), 100MF ±(5.0%+3)

Package Content:
1 x Tacklife DM05 Classic Digital Multimeter
1 x Test Leads
1 x Triode Adapter
1 x 9V Battery
1 x User Manual
1 x Warranty Card

Features:

• ▲HIGH PERFORMANCE-PRICE RATIO - Multimeter can be used for AC current, DC current, AC voltage, DC voltage, frequency, duty cycle, resistance, capacitance measurement and continuity detection, troubleshooting, suitable for professionals and cars, household appliances problems
• ▲TRIODE MULTIPLE MAGNIFICATION - Multimeter can not only measure diode，but also equipped with a dedicated transistor adapter which used to measure transistor magnification,making triode measurements no longer a problem
• ▲NCV SENSITIVE DETECTION: full-scale overload protection, if let the top of the instrument close to the conductor, when the detected voltage is greater than 110Vac (RMS), the voltage buzzer beeps and alarms
• ▲STRONG PROTECTION FEATURES - The multimeter uses an instant double explosion-proof ceramic fuse. When a short-circuit accident occurs, the fuse will fuse rapidly, greatly reducing the risk of equipment, instruments, and personal safety
• ▲EASIER TO USE - protective rubber for drop protection sleeve, bracket function,Data retention, LCD display, backlight function, low battery display and automatic shutdown feature make recording and reading easier

Catalog Numbers:

• DM05

UPCs:

• 709202814636

EAN:

• 0709202814636
