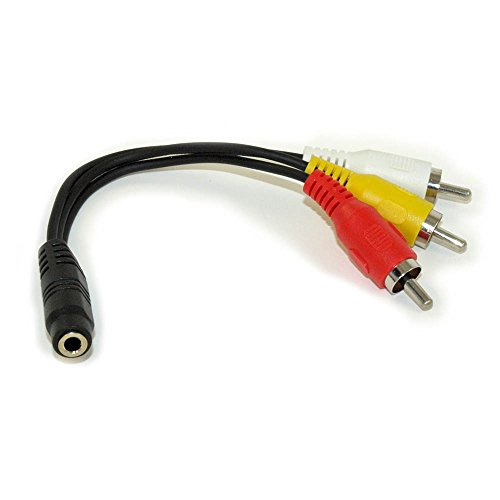

MyCableMart 3.5mm 4 Conductor TRRS Female to 3 RCA Male L/R Audio & Video Adapter Cable

$5.59
Old price : $5.59

My Cable Mart Part#: FE-ADT-201 601393538813 - MyCableMart 3.5mm 4 Conductor TRRS Female to 3 RCA Male L/R Audio & Video Adapter Cable

Specifications:
  • Female 3.5mm 4 Conductor TRRS (Left & Right Audio, Video, and Ground) Connector.
  • 3 RCA Male Connectors (Red/White RCA Audio, Yellow-Composite Video)
  • Length: Approx 6 inches
  • Nickel Plated Conductors
  • Pin-Out: Tip â€" White (Audio Left), Ring 1 â€" Red (Audio Right), Ring 2 â€" Signal Ground, Sleeve â€" Yellow (Video)


This cable is wired to the CTIA / Apple standard. The most important factor in connecting this to your device is that the grounds match between this cable and your device. If your device has ground on the second ring this cable alone will work fine, you will just need to match up the other connectors to your device standard, meaning that the actual colors of the connectors might not match between your device and this cable (your yellow may connect to white on our cable), but the signal types will match and work properly . Also, if your device is wired as OMTP / Nokia, we have a product that will swap the second ring and sleeve connector and can be used along with this cable to properly align the ground connection, this product is the FE-4CT-CTIA-MF.

RMA Returns for this product will be granted - but My Cable Mart will NOT provide pre-paid return shipping costs due to product incompatibilities

Features:

  • SUGGESTION: Order this item in QUANTITY due to light weight to minimize TOTAL shipping costs
  • SHIPPING WEIGHT (Each): 0.06 lbs.
  • 4 Conductor
  • 3.5mm FEMALE to 3 RCA Male L/R Audio & Video Adapter Cable
  • Audio + Microphone/video

UPCs:

  • 601393538813

EAN:

  • 0601393538813
  • Manufacturer: My Cable Mart
  • Part Number: FE-ADT-201
  • Model: FE-ADT-201
