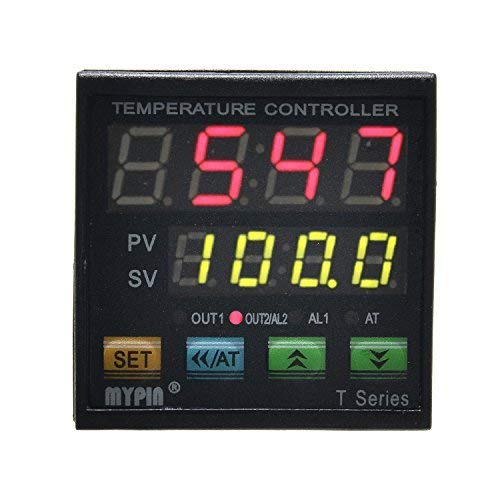

MYPIN® TA4-SNR+K Thermocouple SNR PID Dual Digital Display Temperature Controller Dual Type-K Thermocouple

$.0

Image Part#: 3885598 713382737685 - MYPIN® TA4-SNR+K Thermocouple SNR PID Dual Digital Display Temperature Controller Dual Type-K Thermocouple

Specifications:
Display: Dual display for Fahrenheit(F) and Celsius(C)
Range: -1999 to 9999 (depends on the input signal)
Main Output: SSR: Open circuit: 4V, Closed Circuit: 24V40mA DC
Auto-tuning PID cooling/heating control
1 RELAY alarm:Normal open, capacity 250V/3A AC or 30V/3A DC
7 different Dual Output combinations with:
Accuracy: 0.2%
Input: Thermo Resistor: PT100, Cu50
Thermocouple: J,S,K,E,Wre3 ~ Wre25
Dimension: DIN: 1/16 (48mmX48mmX80mm)
Net Weight: about 150g
Individually programmable PID control parameters.
P, I, d, controlling period, digital filter coefficient, and more... (for control theory experts only)
SSR control ready to connect external Solid State Relay to handle High current. Applications.
K type thermocouple, 0-1320℃, 1m cable(3 feet).

Compact design:

DIN: 1/16, great form-factor to be included/build-in to your product.
Apply with step control, 1 independent PID control for heating/cooling over temperature,pressure,level,flowm,etc..Widely used in auto system in line of light industry, chemistry, machine, metallurgy,ceramics,pertrification industry, or temperature control and adjust system of food & beverage; oven; furnance, plastic extruder heating process etc;
One key operation, Auto-tuning PID/ Fuzzy PID control.Easy operation,Reliable performance
Input: TC(K、J、S、E)/ RTD（Pt100、CU50）universal input, or 4-20mA/0-10V/0-75mV signal from standard pressure/level transmitter,
Control output: RELAY SSR SCR 4-20mA 0-10V (If 4-20mA or 0-10V DC output,you can choose PID control or analog output)
Alarm output: 1 line output,7 kinds of alarm mode: high / low / high deviation / low deviation/ interval / out of interval /breakage alarm

Features:

  • This is a bid for a dual display universal digital programmable temperature controller that supports
  • It can be powered by 90-265V AC/DC or 18-30V AC/DC or 24V DC, Comsumption5VA. DIN 1/16
  • 3 build-in Auto-Tuning Time proportion PID Algorithms to choose for different applications or enviro
  • Individually programmable PID control parameters.
  • Control output: RELAY SSR SCR 4-20mA 0-10V

UPCs:

  • 713382737685
  • 713382814034

EAN:

  • 0713382737685
  • Manufacturer: Image
  • Part Number: 3885598
  • Model: TA4 - SNR + K
  • Color: Black
