New Pilot Unloader Valve for Air Compressor 1/4" MPT - 95-125 PSI

$19.90
Old price : $19.90

Conrader Part#: RCBM-HU 685650063140 - New Pilot Unloader Valve for Air Compressor 1/4" MPT - 95-125 PSI

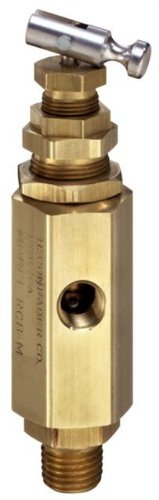

Brand new air compressor unloader pilot valve, made in the USA. The valve is used to operate a compressed air system at a constant run with a preset pressure operating range to actuate throttle controls, intake unloaders or air actuated discharge valves. The valves preset operating range is 95-125 PSI, it has 1/4" male NPT threads that would be used for air hook-up or screwed into the compressor tank and has 1/8" female NPT threads on the side of the valve (as shown in the picture) . The 1/8" threads are the port used to control a throttle, intake unloaders or discharge valve. If more than one outlet is needed it is common to use a "tee" to make multiple ports which can be purchase at a local hardware store.

Features:

  • The valve is used to operate a compressed air system at a constant run with a preset pressure operating range to actuate throttle controls, intake unloaders or air actuated discharge valves.
  • The valves preset operating range is 95-125 PSI, it has 1/4" male NPT threads that would be used for air hook-up or screwed into the compressor tank and has 1/8" female NPT threads on the side of the valve
  • The 1/8" threads are the port used to control a throttle, intake unloaders or discharge valve.
  • This valve's preset pressure can be adjusted, below the manual unloader lever on the top of the valve there are two screw settings that can be adjusted. The bottom one, which is larger than the top one, controls the valve itself and should not be adjusted.
  • Also equipped with manual unloader / control lever which is located at the top of the valve.

UPCs:

  • 685650063140

EAN:

  • 0685650063140
  • Manufacturer: Conrader
  • Part Number: RCBM-HU
