PinterestPortta HDMI Repeater Extender for HDMI Cable up to 35m Support 1080p

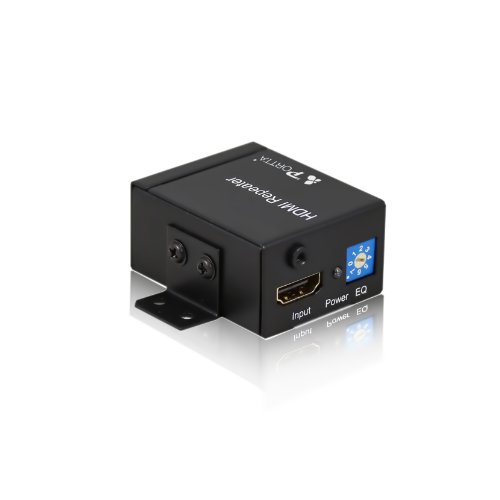

Portta Electronics & Technology Limited Part#: N3RPTRT - Portta HDMI Repeater Extender for HDMI Cable up to 35m Support 1080p
1.0 Introduction
This is a kind of upgrade HDMI Repeater. It extends the length of HDMI cable up to 35M by regenerating the HDMI signal before it sends the outputs to the HDMI monitor or projector. Meanwhile, according to the length of HDMI cable the special designed EQ can be adjusted to reach the best transmission function. This HDMI Repeater adopts the iron shell for better EMI elimination and it will clean out the digital noise (sparkles) in your picture. With the unique designed structure, this repeater can be fixed up with the donated nogs in “L” shape.
This repeater compatible well for HD-DVD,SKY-STB, PS3, Xbox36etc. It offers solutions for residential consumers: HDTV retail and show site, HDTV, STUB, DVD and Projector factories, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
2.0 SPECIFICATIONS
*Input Video Signal :HDMI Signal
*HDMI Input/Output Connector:Type A 19 pin
*Output Video: HDMI 1.3b
*Vertical Frequency Range: 50/60Hz
*Video Amplifier Bandwidth: 2.25Gbps/225MHz
*Interlaced Resolutions(50&60Hz):480i,576i,1080i
*Progressive Resolutions(50&60Hz): 480p,576p,720p,1080p
*Size(L-W-H): 50X40X26 mm
*Weight (Net): 78g
*Operating Temperature:0 ℃ to +70℃
*Operating Humidity:10% to 85 % RH (no condensation)
*Storage Temperature:-10℃ to +80℃
*Storage Humidity: 5% to 90 % RH (no condensation)
*External Power Supply:HDMI Cable
*Power Consumption:3W Converter Unit: FCC,CE
3.0 Package Contents
>>1) Main unit. x1
>>2) Two "L" Shape nogs x1
>>3) Screw x4
>>4) Screwdriver x1
>>5) User Manual. (English Version )x1
>>6) Warranty Card x1 (5 Years Worry-free Warranty)
Features:
- Supports highest video resolution 1080p. Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth. Supports 12bit per channel (36bit all channel) deep color and HDCP pass-through.
- Iron Shell for better EMI elimination. Supports uncompressed audio such as LPCM. Supports compressed audio such as DTS Digital, Dolby Digital including DTS-HD and Dolby True HD）.
- 8 levels of equalization settable by turning EQ from 0 to 7, so that support different length of HDMI cable between 1m to 35m. Unique designed structure for better connection. Support 3D
EAN:
- 4897040980814
- Manufacturer: Portta Electronics & Technology Limited
- Part Number: N3RPTRT
- Model: N3RPTRT
- Color: No
