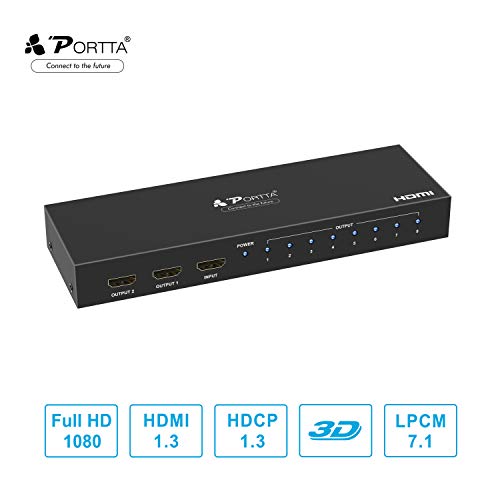

Portta HDMI Powered Splitter 1x8 8 Ports v1.3 8 Port Support Full HD 1080P & 3D Deep Color HD Display on 8 TV (One Input to Eight Outputs)

$41.99
Old price : $41.99

Portta Electronics & Technology Limited Part#: N3SP18P 813120012804 - Portta HDMI Powered Splitter 1x8 8 Ports v1.3 8 Port Support Full HD 1080P & 3D Deep Color HD Display on 8 TV (One Input to Eight Outputs)

1.0 INTRODUCTION
This splitter is beautiful in appearance. It distributes the input of the HDMI signal into the eight identical outputs simultaneously. It supports HDCP and the real HDMI 1.3b. Its video amplifier bandwidth can be up to 2.25Gpbs/225MHz.

2.0 SPECIFICATIONS
Signal Input:HDMI Signal
Input Video Signal:0.5 -1.0 volts p-p
Input DDC Signal:5 volts p-p (TTL)
Maximum Single Link Range:1920X1200, 1080P
Output Video:HDMI 1.3b+ HDCP1.0/1.1/1.2
VGA:640x480,800x600,1024x768,1920x1200
HDMI Compliance:HDMI 1.3b
Video Amplifier Bandwidth: 2.25Gpbs/225MHz
Interlaced(50&60Hz):480i,576i,1080i
Progressive(50&60Hz):480p,576p,720p,1080p
Operating Temperature:0℃ to +70℃
Storage Humidity: 5% to 90 % RH (no condensation)
External Power Supply:5V DC
Converter Unit Cert.:FCC,CE
Power Supply Cert.:CE,FCC
AC Power Adapter:US standard

3.0  PACKAGE CONTENTS
1) Main unit x1
2) 5V DC Power Supply x1
3) User’s Manual. (English Version) x1

Features:

  • Cascaded: Large distribution achieved by cascading the HDMI Amplifier Splitter. Support HDMI1.3b
  • Support highest video resolution 1080p High performance up to 2.25Gbps
  • Support uncompressed audio such as LPCM Support compressed audio such as DTS Digital, Dolby Digital(including DTS-HD and Dolby True HD)
  • Support 3D

Catalog Numbers:

  • 12304153031

UPCs:

  • 813120012804

EAN:

  • 0813120012804
  • Manufacturer: Portta Electronics & Technology Limited
  • Part Number: N3SP18P
  • Model: N3SP18P
  • Color: No
