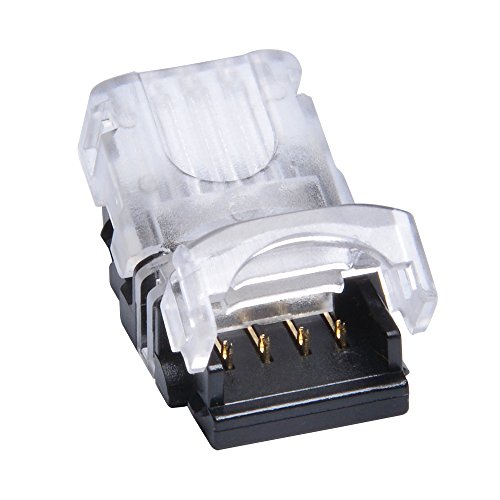

Qijie Part#: QJ-DJ-N10XB-4 710619657099 - QIJIE 5050 RGB LED Strip Connector 4 Pin for Waterproof 10mm Flexible Tape Light, Board To Wire (22~20AWG), Applicable To Digital Strip WS2813, Terminal Only, No Wire Included, Pack of 10 PCS

QIJIE 4 pin LED light strip connector is a non-stripped solution to quickly connect waterproof 5050 RGB strip light to 4-conductor flat wire. No soldering, no stripping,no twisting. Just simply place waterproof tape light above the pin(no need remove waterproof coating)and press cap down, the pin will go through FPCB from back and contact copper layer.When connecting to wire, the pin can pierce the insulation of wire and contact the cable core inside. All this can be done with a pliers which means it can really free you from difficult and dangerous solering iron operation

1) LED Strip Type It Can Work With

• Normal RGB LED light strip with waterproof coating above diode
• Digital chasing LED strip like WS2813
• Other IP65/IP54 LED strip light 10mm with 4 solder pad

SPECIAL NOTE:This connector NOT for PURE SILICON waterproof coating LED strip light.Specific version for SILICON strip light, please visit --> https://www.amazon.com/dp/B01N9QXW04

2) Package Include

LED Strip Connector 4 Pin:10 PCS

3) More Options

• 5 PCS + 9.8 Feet RGB Wire --> https://www.amazon.com/dp/B01MZ3GAEZ
• 10 PCS + 40 Feet RGB Wire --> https://www.amazon.com/dp/B01N5OLABN

4) Tools Needed

A Clamp

5) Technical Data

Working Voltage:Below 24V
Max Current of Pin: 5A
Pin Quantity: 4 pin
Workable Wire Gauge: 22~20AWG / 0.34~0.54 mm²
Workable Strip Light Width: 10mm
Workable PCB Thickness:0.2~0.35 mm
Working Ambient TEMP.: -20~50℃
Heat Resistance:105℃
Connector Dimension: 24.3*14.6*7.7 mm

Features:

• One end of this LED Strip Connector for 4-conductor flat RGB extension wire and another end for waterproof RGB strip light. Clear cap design will allow light to go through, hardly cast dark shadow to your lighting space. For Epoxy and PU WATERPROOF strip ONLY. If need NON-WATERPROOF or SILICON coating waterproof, search--> B01N9QXW04
• Penetrate PCB to connect without peeling waterproof coating nor wire insulation (insulation-piercing contact). DIY RGB strip to wire connector in length you want,no mater board-to-wire input or board-to-board jumper, extension distance and angle are no more problems to you
• Strip light end can work with 10mm wide SMD5050 rgb waterproof strip light and pixel tape light WS2813 (Both below 96LEDs/Meter), wire end can work with 4 conductor wire ranging 22~20AWG/0.34~0.54 mm2 (exclude silicon wire)
• This 4 pin strip light connector is durable and powerful,made of low-resistance copper and flame-retardant PC it can support up to 5A ( R,G,B 3 channel ) current carrying,which allow you extending longer and safer continuous LED strip lighting by single connector
• MONEY-BACK GUARANTEE----Nicelux 4 pin connector are sold with a full 30 days money-back guarantee. If you're unsatisfied with this item for any reason, we'll refund your purchase price immediately. If you have any difficulty to install this LED strip connector , just contact us at any time , We will answer any question from you till your issue is solved. NO WIRE included, if need wire, pls visit --> https://www.amazon.com/dp/B01MZ3GAEZ

UPCs:

• 710619657099

EAN:

• 0710619657099
