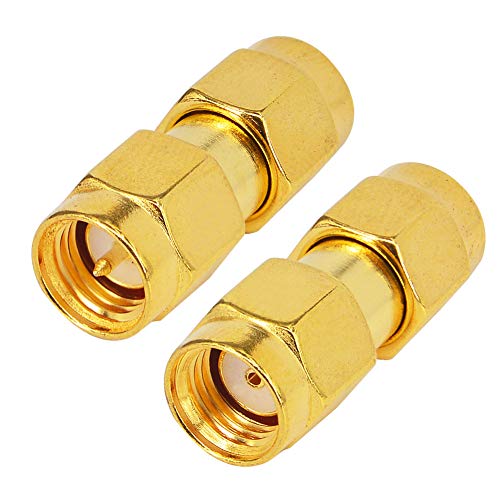

RF Coaxial Adapter SMA Male to RP SMA Male Female Pin Jumper Cable Connector for Audio FPV Antennas Radio Video Mobile Pack of 2

$5.46
Old price : $5.46

Onelinkmore Part#: 4330134405 701988660605 - RF Coaxial Adapter SMA Male to RP SMA Male Female Pin Jumper Cable Connector for Audio FPV Antennas Radio Video Mobile Pack of 2

Product Series:
TYPE SMA is one kinf of RF coaxial connectors that is widely applied,with small-sized thread coupling,characteristic impedance is 50 Ω,This SMA series is small threaded coaxial connectors with high frequency bandwidth, excellent performance, high reliability and long life, has a wide range of application, eg: connection for two-way radio, audio, video, and other test equipment.
Product Specification:
Temp range:-65～+165℃ (PE Cable-40～+85℃)
Vibration:MIL-STD-202,Method 213
Impedance:50Ω
Frequency Range：DC～12.4GHz
Working Voltage：335V max
Insulation resistance≥ 5000 MΩ
Insertion loss≤0.15 dB/3GHz
Category: Adapters, Interconnects
Family: Coaxial, RF Adapters
Series: RP-SMA to SMA
Convert From (Adapter End): RP-SMA Plug,female Pin
Convert To (Adapter End): SMA Plug,male Pin
Style: straight
Contactor plating: Goldplated
Plating: Goldplated
Mounting Type: Free Hanging

Features:

  • RP SMA Male ( hole in center, thread inside) to SMA Male ( pin in center,thread inside) RF Coaxial Connector Adapter
  • Adapter for 2.4ghz wifi antenna,connect SMA female and RP SMA Female connectors
  • SPECIFICATION: Impedance: 50Ohm¸,Durable Cycles: 500 Cycles,Temp.range: -65~ +165℃(PE Cable -~ +85 ℃),Insulation resistance :5000MΩ.
  • Convert from SMA male to RP SMA male coaxial coax adapter
  • 2 Pieces SMA to RP SMA coaxial adapters included

UPCs:

  • 701988660605

EAN:

  • 0701988660605
  • Manufacturer: Onelinkmore
  • Part Number: 4330134405
  • Model: OL0842-X
  • Label: onelinkmore
