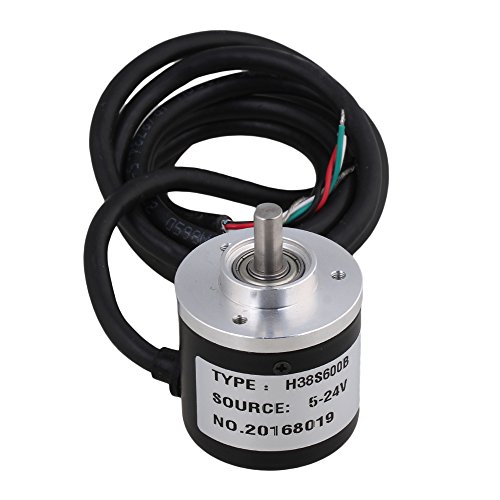

BQLZR 600P/R Incremental Rotary Encoder DC5-24V Wide Voltage Power Supply 6mm Shaft

$.0

Bqlzr Part#: N04452 700381284692 - BQLZR 600P/R Incremental Rotary Encoder DC5-24V Wide Voltage Power Supply 6mm Shaft

Note: The color of the item may vary slightly due to photography and your own computer
600 p/r (Single-phase 600 pulses /R,Two phase 4 frequency doubling to 2400 pulses).
With small size, light weight, easy to install, cost-effective features.
For measuring goods angle, acceleration, length measurements and the rotational speed
Apply to a variety of displacement measurement intelligent control,measuring height of civilian body scale and so on
Connection:
Red = A phase, Green = B phase, White =Vcc power +, Black = power -
Notice: AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode.
Specifications:
DC5-24V wide voltage power supply
Speed: more than 5000 r / min
Shaft: 6mm/0.23" Dia, 13mm/0.51" Length
Size: 39mm/1.53" Dia, 36.5mm/1.43" Length
Output: AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type

Package included:
1 x Encoder 600P/R Incremental Rotary Encoder

Features:

  • High speed
  • Easy to install

UPCs:

  • 700381284692
  • 702658169732
  • 711508961600
  • 786471136089
  • 600748167241

EAN:

  • 0711508961600
  • Manufacturer: Bqlzr
  • Part Number: N04452
  • Model: N04452
  • Label: BQLZR
