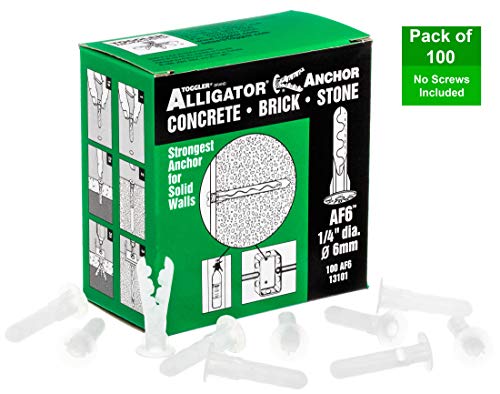

The TOGGLER ALLIGATOR AF6 flanged anchor provides a secure hold in solid and hollow concrete, brick, stone, and drywall, and is made in USA. Once inserted into a 1/4" drilled hole in a wall, ceiling, or floor, the anchor accepts a #6 to #12 size screw with a thread length at least equal to the thickness of the item being fastened plus 1-3/8". The anchor head is flanged for additional stability compared to a flush-mount head when installing into hollow material and has fins that grip the mounting material to prevent spinning when a screw is inserted. When installed within a solid material, the corrosion-resistant polypropylene body expands and elongates to fill and mold to the hole. This helps distribute the force evenly throughout its length to help prevent wall fracture. When installed within a hollow material or a solid material with unexpected cavities, the anchor's jaws open as a screw is inserted, locking the anchor and screw within the material.

Specifications

Ultimate Tensile Strength Values

Anchor	Drill Diameter	Screw Description	1/2" Drywall	3,500 psi Concrete
A5/AF5	3/16"	#8 sheet metal screw	57 lb.	544 lb.
A6/AF6	1/4"	#10 sheet metal screw	69 lb.	675 lb.
A8/AF8	5/16"	#12 sheet metal screw	85 lb.	1,025 lb.
A10	3/8"	#14 sheet metal screw	N/A	1,168 lb.

Ultimate Shear Strength Values

Anchor	Drill Diameter	Screw Description	1/2" Drywall
A5/AF5	3/16"	#8 sheet metal screw	125 lb.
A6/AF6	1/4"	#10 sheet metal screw	153 lb.
A8/AF8	5/16"	#12 sheet metal screw	171 lb.

Warning: Use one-fourth or less of listed maximum values for safe working loads (as required by local regulations). For more information, see the manufacturer's technical bulletin.

Anchors provide reinforcement to fasteners installed in materials that are considered brittle or have insufficient hold such as drywall, concrete, brick, and stone. Anchors provide support through methods such as expansion from within or behind the substrate, or insertion of adhesive compounds into drilled holes.

TOGGLER Anchor System manufactures wall anchors and toggle bolts. The company, founded in 1968, is headquartered in Norwalk, CT.

Features:

• Anchor installs into hollow and solid materials such as concrete, brick, stone, and drywall to securely hold a load and has a flanged head for additional stability when installing into hollow material
• Corrosion-resistant polypropylene body expands and elongates within a solid substrate to distribute force evenly and opens its jaws to lock position within a hollow substrate when a screw is inserted
• Made in USA, and works with #6 to #12 screw sizes (sold separately)
• Ultimate tensile strength is 69 lb. in 1/2" drywall and 675 lb. in 3,500 psi concrete with a #10 sheet metal screw
• Use one-fourth or less of listed maximum values for safe working loads (as required by local regulations)
