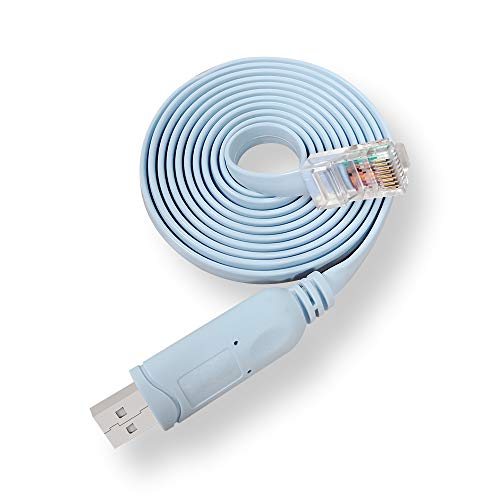

USB Console Cable, Boreguse USB to RJ45 Cisco Console Cable for Cisco Routers/AP Router/Switch/Windows 7, 8, 10 (1.8m, Blue)

$11.66
Old price : $11.66

Boreguse Part#: 192687325054 - USB Console Cable, Boreguse USB to RJ45 Cisco Console Cable for Cisco Routers/AP Router/Switch/Windows 7, 8, 10 (1.8m, Blue)

Boreguse USB Console Cable-6ft(1.8m)
This Console Cable is Full support for Windows, MAC and Linux, no CD needed because the drivers are part of the OS distribution.
If the system can not Automatic installation the driver, you need to download and install from the FTDI website on , http://www.ftdichip.com/FTDrivers.htm

Installation and operation method
1. The USB port connect to the computer, RJ45 port need to connect configure the switch or router
2. PC port found new hardware, follow the prompts
3. If you need to install the driver, you can download the driver, and directly update the program.
4. PC port configuration, according to the router or switch manual to select the port, the general use of
COM1 can (right-Properties-Device Manager-Port-select the new COM port-select the port-hold-re drive the computer)
5. If the system can not Automatic installation the driver,you can download from the FTDI website on
and you will need to install a driver, http://www.ftdichip.com/FTDrivers.htm.
Above windows7 system will install it automatically.
Bellow Windows7 system you will need to download and install a driver on line, http://www.ftdichip.com/FTDrivers.htm.

Operating system support

Windows 10
Windows 8.1
Windows 8.1 x64
Windows 8
Windows 8 x64
Windows Server2012
Windows Server 2008 R2
Windows 7
Windows 7 x64
Windows Server 2008
Windows Server 2008 x64
Windows Vista
Windows Vista x64
Windows Server 2003
Windows Server 2003 x64
Windows XP
Windows XP x64
Windows ME
Windows 98
Linux
Mac OS X
Mac OS 9
Mac OS 8
Windows CE.NET (Version 4.2 and greater)
Android
Windows RT

Package included
1* FTDI USB to RJ45 cable

Support Policy:
1 Year

Features:

  • 【USB Console Cable】: This Console Cable is to help those who have a PC or laptop and want to use a USB connection to connect the console port with their Cisco modem, router, firewall, switch or other Serial based Cisco device. This is the exact Cable to solve such problem.
  • 【Wide Compatible】: This USB to Rj45 Cable compatible with computers of 32-bit and 64-bit operation system in Windows, Mac OS, Linux. No need to download driver for Windows 8/10 and Mac OS with Microsoft (HCL) certified. As for Windows 7, you will need to download and install a driver on line, http://www.ftdichip.com/FTDrivers.htm
  • 【FT232RL Chip】: FTDI232RL+ZT213LEEA. The console cable adopts the UK original imported FTDI company FT232RL chip, which is currently the best serial chip with compatibility and stability, and full support for Windows, MAC and Linux.
  • 【Application】: USB to RJ45, using RS-232 specification, Cisco, Huawei, H3C, ZTE and other routers/ swithces debugging communication
  • 【Simple Installation】: Replaces RS232 (DB-25/DB-9) Serial port perfectly, connecting any laptop/PC's USB port directly to a console port like a charm. No more RS232 Female and male adapters.

UPCs:

  • 192687325054

EAN:

  • 0192687325054
  • Manufacturer: Boreguse
  • Color: Blue
