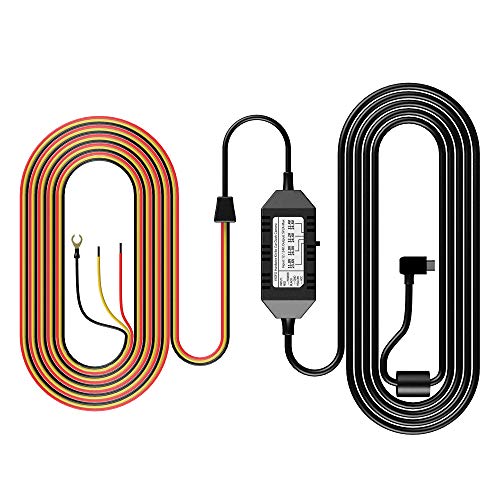

Viofo Part#: 3-Wire Hardwire 680613279453 - VIOFO A129 Dash Cam 3 Wire Acc HK3 Hardwire Kit for Parking Mode

Input:12/24V
Output: 5V2A Max
Use mini USB

There are three parking recording options when dash cam is in parking mode:

☞Auto Event Detection:
Automatically record when detecting moving objects or impact while car is parking.

☞Time Lapse:
Photography at specified intervals so that they can playback much faster than real time.

☞Low Bitrate Recording:
Record video at low bitrate to save storage space.

Note:
1. You just need set the parking recording options in the camera for the first use, and then it will work automatically.
2. This hardwire is also fit for other dashcam, but the ACC function maybe not available.
3. If you do not want ACC funtion, you do not need connect the ACC cable. Other functions still work.
4. You need use 2 circuit fuse taps to work with A129 harwire kit. One is connected with ACC cable, one the connected with battery cable. 2 amp, 3 amp, 5 amp fuses are all available to work with A129 hardwire.
5. Once connected the hardwire, both front and rear cameras come into parking mode.

Length of Cable: 4 meters.

Warranty: 1 year. Lifetime technical support

Features:

• Adjustable voltage low voltage protection function, it will cut power to your dash camera when detect the vehicle battery voltage is below the set number. It has four voltage options 11.8V, 12V, 12,2V, 12.4V
• With ACC detection feature, dash cam will switch to parking mode automatically if the vehicle engine off, and switch back to normal recording after vehicle engine on. Please be sure the cable is connected to the camera directly, not through the GPS mount. Note: GPS will also work if the cable is connected to the camera body.
• Support three parking recording modes, auto event detection, time lapse and low bitrate recording
• The red battery cable should be connected to constant power. The ACC yellow cable should be connected to ignition. The Ground cable should be connected to vehicle body.
• Also fit for other dash cams, but ACC function will not be available.
