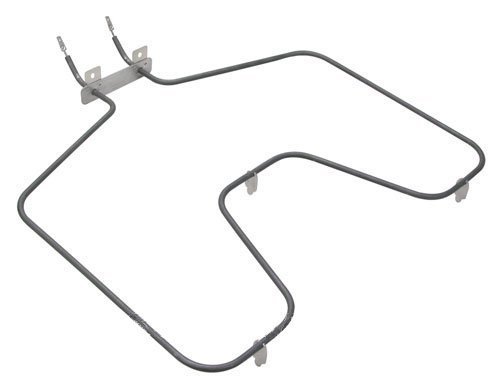

WB44K10005 CH44K10005 GE Hotpoint Kenmore Oven Lower Bake Element

$18.99
Old price : $17.47

General Electric Part#: WB44K10005 720825768373 - WB44K10005 CH44K10005 GE Hotpoint Kenmore Oven Lower Bake Element



Replacement bake element for General Electric Part Number CH44K10005.  Dimensions:17-1/4" Width, from Side to Side at the widest spot  15 1/2" Length, from mounting bracket to back  2-3/8" From end of terminal to the mounting bracket (measuring up at an angle)  2 5/8" between each terminal,  Terminals are male spade type  Calrod is bent up at then end towards 2 mounting holes  2585 Watts 240 VoltsReplacement for numbers WB44K10005, WB44K10001, AP2030964 and PS249348.  It is designed to fit specific General Electric manufactured range models including Hotpoint and RCA.

Features:

  • Replacement Bake and Broil Elements.
  • Supco Bake Element Replaces WB44K10005.

UPCs:

  • 720825768373

EAN:

  • 0720825768373
  • Manufacturer: General Electric
  • Part Number: WB44K10005
  • Model: CH44K10005
  • Color: Black
