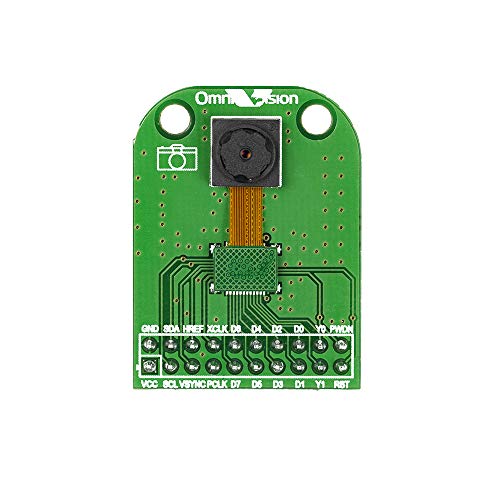

Arducam 2 Megapixels OV2640 1/4" CMOS Sensor Camera Module Adapter Board JPEG Out

$.0

Arducam Part#: B0011 - Arducam 2 Megapixels OV2640 1/4" CMOS Sensor Camera Module Adapter Board JPEG Out

The OV2640 CAMERA chip image sensor is a low voltage CMOS device that provides the full functionality of a single-chip UXGA(1632X1232) camera and image processor in a small footprint package. The OV2640 provides full-frame,sub-sampled,scaled or windowed 8-bit/10-bit images in a wide range of formats,controlled through the Serial Camera Control Bus (SCCB) interface.

Feature:
Maxim frame rate 30fps at SVGA, 60 fps at CIF
Onboard regulator for DVDD,DOVDD,AVDD, only single 3.3V supply needed
High sensitivity for low-light operation
Low operating voltage for embedded portable apps
Standard SCCB interface
Supports image sizes:UXGA,SXGA, SVGA,and any size scaling down from SXGA to 40x30
VarioPixel method for sub-sampling
Automatic image control functions including Automatic Exposure Control (AEC),Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)
Image quality controls including color saturation,gamma, sharpness (edge enhancement), lens correction, white pixel canceling, noise canceling, and 50/60 Hz luminance detection
Line optical black level output capability
Video or snapshot operation
Zooming,panning,and windowing functions
Internal/external frame aynchronization
Variable frame rate control
Supports LED and flash strobe mode
Supports scaling
Supports compression
Embedded microcontroller
Digital Video Port interface, 3.3V LVTTL compatible

Applications:
Cellular and Camera Phones,Toys,PC Multimedia,Digital Still Cameras

Packing included:
1pcs 2MP OV2640 1/4" CMOS Sensor Adapter Board JPEG OUT
FTP support for datasheets

Features:

  • Maxim resolution 1600 x 1200 UXGA at 15 fps
  • Output support for Raw RGB, RGB (RGB565/555),GRB422,YUV (422/420) and YCbCr (4:2:2) formats
  • Easy intergrate with STM32,FPGA,DSP,Arduino etc.
  • Supports image sizes:UXGA,SXGA, SVGA,and any size scaling down from SXGA to 40x30
  • Support real time JPEG compression
  • Manufacturer: Arducam
  • Part Number: B0011
  • Model: B0011
  • Color: Camera Module Adapter Boa
