HiLetgo BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Arduino Current Limit

$13.59
Old price : $13.59

Hiletgo Part#: 3-01-0833 702949574993 - HiLetgo BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Arduino Current Limit

Instruction:

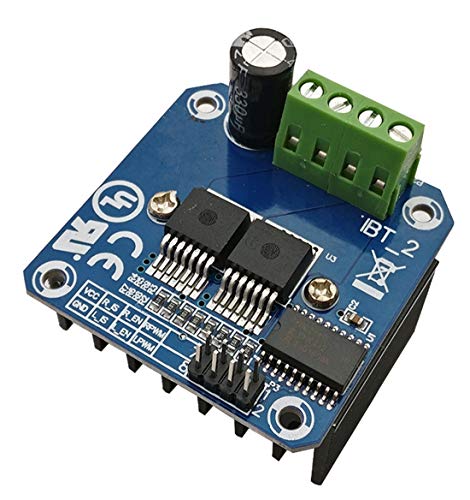

This driver uses Infineon chips BTS7960 composed of high-power drive full H-bridge driver module with thermal over-current protection. Double BTS7960 H-bridge driver circuit, with a strong drive and braking, effectively isolating the microcontroller and motor driver! High-current 43A.

Electrical performance:
Model: IBT-2
Input voltage: 6V-27V
Maximum current: 43A
Input level: 3.3-5V
Control method: PWM or level
Duty cycle: 0-100%
Input port:
1.RPWM: forward level or PWM signal input, active high
2.LPWM: Reverse level or PWM signal input, active high
3.R_EN: forward drive enable input, high-level enable, low level off
4.L_EN: Reverse drive enable input, high-level enable, low level off
5.R_IS: forward drive current alarm output
6.L_IS: Reverse drive current alarm output
7.VCC: +5 V power output, 5V power supply connection with the microcontroller
8.GND: signal common low end

Package Included:
1BTS7960 43A High Power Motor Driver Module/ Smart Car Driver Module

Features:

  • 5V isolate with MCU, and effectively protect MCU; 5V power indicator on board.
  • Voltage indication of motor driver output end; can solder heat sink.
  • Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2); isolation chip 5 V power supply (can share with MCU 5 V).
  • Able to reverse the motor forward, two PWM input frequency up to 25kHZ; two heat flow passing through an error signal output.
  • Isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply; the supply voltage 5.5V to 27V.
