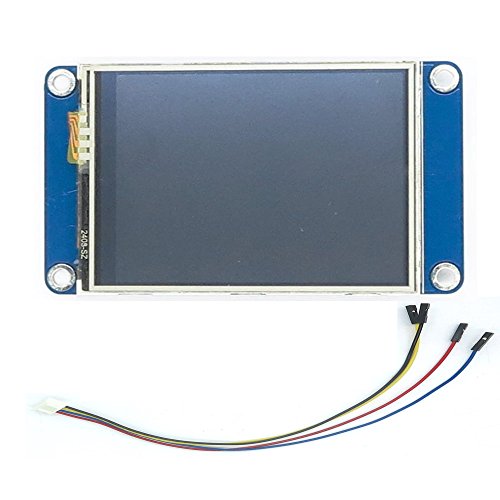

Itead Nextion 2.4'' UART HMI Smart LCD Module Display NX3224T024 for ESP8266

$21.49
Old price : $21.49

Diymall Part#: FZ1716 - Itead Nextion 2.4'' UART HMI Smart LCD Module Display NX3224T024 for ESP8266

Description:
NX2432T024 is a powerful 2.4'' HMI, which is member of Nextion family.
Features include: a 2.4" TFT 320 x 240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.

Features:
320 x 240 Resolution
RGB 65K true to life colours
TFT Screen with integrated 4-wire Resistive Touch Panel
Easy 4 pin interface to any TTL Serial Host
4M Flash memory for User Application Code and Data
On board micro-SD card for firmware upgrade
Visual Area:36.72mm(L)¡Á48.96mm(W)
Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
5V90mA power conusmption

Package Included:
1 X 2.4'' UART HMI LCD Module
1 X 4P cables

Features:

  • 1, Attention: A,this is basic version display, it is Resistive display, not capactive touch display, so better you use touch pen with this display.B,regarding the software for Nextion display, at present only windows software, Mac OS software for it is not available
  • 2, Links: https://www.itead.cc/wiki/NX3224T024; Nextion Editor Download link: https://nextion.tech/resources/download/
  • 3, Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. It mainly applied to IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.
  • 4, This solution includes hardware part - a series of TFT boards and software part - Nextion editor
  • 5, Nextion TFT board uses only one serial port to do communicating. Let you get rid of the wiring trouble. It's easy to adapt Nextion family HMI to existing projects, you just need to provide it a UART
  • Manufacturer: Diymall
  • Part Number: FZ1716
  • Label: DIYmall
  • Color: NX3224T024
