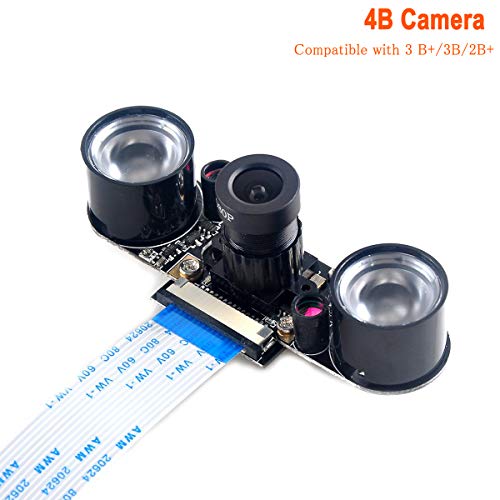

Makerfocus Part#: P3U115103T5LGT378 190033786429 - MakerFocus Raspberry Pi 4 Camera Night Vision Camera Adjustable-Focus Module 5MP OV5647 Webcam Video 1080p Compatible with Raspberry 3 B+/3B/2B+

MakerFocus Raspberry Pi 4 Camera Night Vision Camera Adjustable-Focus Module 5MP OV5647 Webcam Video 1080p Compatible with Raspberry 3 B+/3B/2B+

Description:
This product is Raspberry Pi Camera Module, Supports Night Vision,This camera can Adjustable-Focus.supports all revisions of the Pi
5 megapixel OV5647 sensor.

Features:
Raspberry Pi Night Vision Camera, supports all revisions of the Pi
5 megapixel OV5647 sensor.

Specifications:
COMS size : 1/4 inch
Aperture (F) : 1.8
Focal Length : 3.6MM (adjustable)
Diagonal : 75.7 degree
Sensor best resolution : 1080p
4 screw holes
Used for attachment
Provides 3.3V power output
Supports connecting infrared LED and/or fill flash LED
Dimension : 25mm * 24mm

Package Including
1 * RPi Camera
2 * Fill light
1 * 15-pin FFC

Features:

• Please note: The LED fill lights on both sides will warm up(generally in 40 to 50℃) when they working, but it is normal, please don't worry, they can keep working 20 hours, it will not damage the camera normally. You can adjust the micro adjustable resistor(beside the lights) to turned down the lights to Lower temperatures. Instructions video: https://www.youtube.com/watch?v=HOCA60gGHAs
• Instruction manual: https://www.waveshare.com/w/upload/6/61/RPi-Camera-User-Manual.pdf ; This product is Raspberry Pi Camera Module, Supports Night Vision,This camera can Adjustable-Focus.Supports all revisions of the Pi 5 megapixel OV5647 sensor.
• Supports connecting infrared LED and/or fill flash LED. This Raspberry Pi 4 Camera Night Vision Camera also support to Raspberry Pi 3B/3B+ and Pi 2B B+
• Provides 3.3V power output. Diagonal : 75.7 degree; Sensor best resolution : 1080p.
• When using this camera, please note: Normal problems: 1.The computer doesn't recognize the camera; The LED lights doesn't work (including one on and one off); The camera doesn't work after a period of use. Solution: Tighten the bolts of the LED and camera, then restart it. 2.The LED lights always turn on no matter if the camera is turned on or not. Solution: Connect the power supply to GPIO, then the LED light will be on only when the camera is turned on.

UPCs:

• 190033786429

EAN:

• 0190033786429
