PinterestTOGGLER Toggle TB Residential Drywall Anchor with Screws, Polypropylene, Made in US, 3/8" to 1/2" Grip Range, For #6 to #14 Fastener Sizes (Pack of 20)
Mechanical Plastics Corp. Part#: 50525 036296452209 - TOGGLER Toggle TB Residential Drywall Anchor with Screws, Polypropylene, Made in US, 3/8" to 1/2" Grip Range, For #6 to #14 Fastener Sizes (Pack of 20)
The TOGGLER Toggle TB residential drywall anchor provides a firm hold in 3/8"- to 1/2"-thick drywall, includes #8 x 1-1/2" screws, and is made in USA. The anchor is made from polypropylene that resists corrosion, is nonconductive for anchoring electrical components, and is low-friction to facilitate screw installation. The anchor hammers into a 5/16" drilled hole until flush with the mounting material's surface. Before the screw can be inserted into the anchor to create a secure hold, the included key is used to open the anchor's wings behind the material. The fins on the anchor head grip the mounting material to prevent spinning when a screw is inserted, and the anchor will stay in place if the fastener is removed, facilitating fixture and screw changes. If using screws other than those supplied, the anchor accepts #6 to #14 size screws with a minimum thread length of 1-1/4". The Toggle TB anchor meets Federal Specification FF-B-588-D for Type IV anchors.
Specifications
Ultimate Tensile Strength Values
| Anchor | Drill Diameter | Screw Description | 1/4" Plywood | 1/2" Plywood | 3/8" Drywall | 1/2" Drywall | 5/8" Drywall |
| TA | 5/16" | #8 x 1-1/4" | 124 lb. | Not applicable | Not applicable | Not applicable | Not applicable |
| TB | 5/16" | #8 x 1-1/2" | Not applicable | 175 lb. | 97 lb. | 143 lb. | Not applicable |
| TC | 5/16" | #8 x 1-3/4" | Not applicable | Not applicable | Not applicable | Not applicable | 159 lb. |
Ultimate Shear Strength Values
| Anchor | Drill Diameter | Screw Description | 1/4" Plywood | 3/8" Drywall | 1/2" Drywall | 5/8" Drywall |
| TA | 5/16" | #8 x 1-1/4" | 265 lb. | Not applicable | Not applicable | Not applicable |
| TB | 5/16" | #8 x 1-1/2" | Not applicable | 126 lb. | 167 lb. | Not applicable |
| TC | 5/16" | #8 x 1-3/4" | Not applicable | Not applicable | Not applicable | 237 lb. |
Warning: Use one-fourth or less of listed maximum values for safe working loads (as required by local regulations). For more information, see the manufacturer's technical bulletin.
Anchors provide reinforcement to a fastener that would otherwise have insufficient hold in substrates such as concrete, brick, stone, drywall, or other materials for a particular application. The fastener may be included with or integrated into the anchor itself, or it may be sold separately. Anchors provide support through various methods, including expansion from within or behind the substrate or even adhesive compounds.
TOGGLER Anchor System manufactures wall anchors and toggle bolts. The company, founded in 1968, is headquartered in Norwalk, CT.

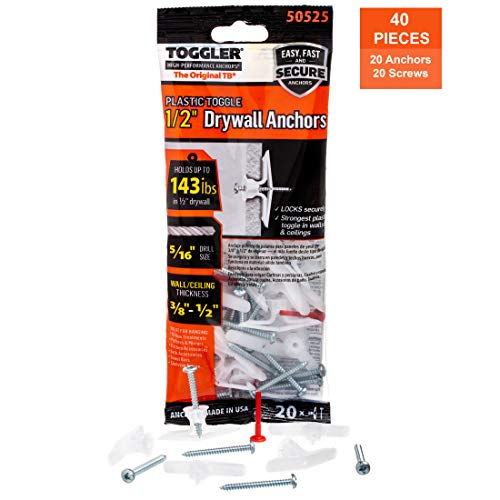

What’s in the Box?
- (20) TOGGLER Toggle TB anchors
- (20) #8 x 1-1/2" screws
- (1) Setting key
Features:
- Residential drywall anchor provides a firm hold from within 3/8"- to 1/2"-thick drywall
- Anchor affixes to the wall before adding the bolt and fixture, allowing one-person installation and fixture changes
- Made in USA, and includes #8 x 1-1/2" screws
- Ultimate tensile strength is 143 lb. in 1/2" drywall with a #8 x 1-1/2" screw
- Use one-fourth or less of listed maximum values for safe working loads (as required by local regulations)
Catalog Numbers:
- B1054070
- 621245
UPCs:
- 036296452209
- 036296505257
EAN:
- 0036296505257
- Manufacturer: Mechanical Plastics Corp.
- Part Number: 50525
- Model: 45220
- Color: Original Version
