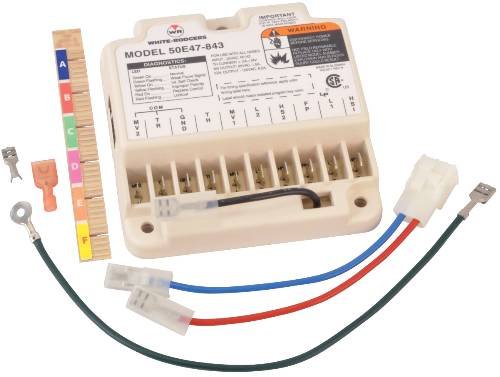

White-Rodgers 50E47-843 Hsi Module

$98.22
Old price : $98.22

White-Rodgers Part#: 50E47-843 786710111235 - White-Rodgers 50E47-843 Hsi Module

White Heat Digital Single Non-Programmable. Specifications Dimensions - 4.13" W x 4.13" H x 1.50" D Electrical Rating - Input 18 to 30 VAC, 25 VAC nominal max. Input Current - @25 VAC: 0.2 amp @ 25 C° Relay Load Ratings Valve Relay: 1.5 amp @ 25 VAC 60 Hz .6PFIgnitor Relay: 6.0 amp @120 VAC 60 Hz resistive Program Key Information Six Program Keys are provided for different application. This table shows timings and retries for each key. After selecting and inserting the proper key remove or dispose of the remaining keys. Lockout Time: Igniter Warm-Up Time: 45 Seconds50E47 Prepurge Time: 30 Seconds50F47 Prepurge Time: 17 Seconds Retries: 2*Well included and U.L. approved adjustable dial stop, factory set at 160°F maximum.

Features:

  • Replaces All White-Rodgers and Virtually All Competitive Carbide Non-Integrated Modules
  • Easy to Install
  • LED Indicator for "Power On" and System Diagnostics
  • CSA listed
  • Includes 6 Different Color-Coded Program Keys

Catalog Numbers:

  • 50E47843
  • 04101889
  • 50E47-843
  • ZO G3482263

UPCs:

  • 786710111235
  • 754633943226

EAN:

  • 0786710111235
  • Manufacturer: White-Rodgers
  • Part Number: 50E47-843
  • Model: 50E47-843
  • Label: WHITE-RODGERS
  • Color: white
